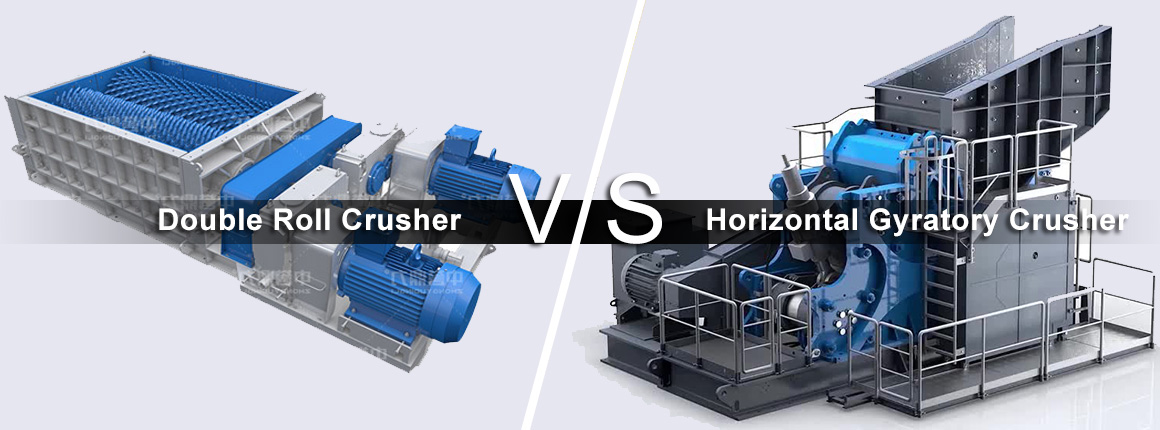

In the realm of mineral processing, selecting the appropriate crushing equipment is crucial for optimizing efficiency and ensuring product quality. The Double Roller Crusher and the Horizontal Gyratory Crusher are two different machines with distinct advantages and applications. This article will delve into the differences between these two crushers, providing a comprehensive overview to help you make an informed choice.

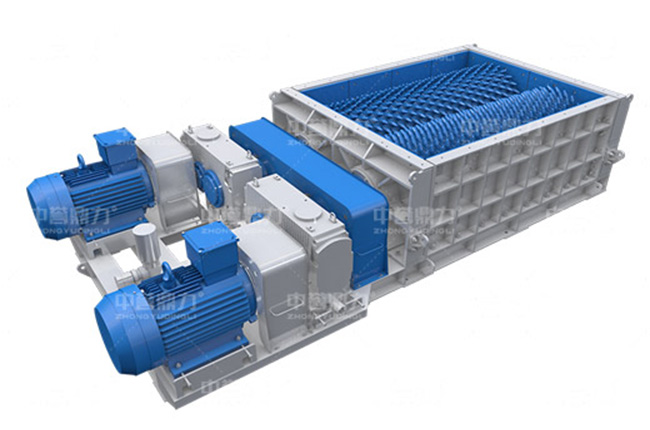

The Double Roller Crusher features a simple structure consisting of two cylindrical rollers that rotate in opposite directions.
The design is straightforward, allowing for easy operation and maintenance. The rollers are usually equipped with wear-resistant surfaces to extend their lifespan, and the machine is compact, making it suitable for installations with limited space.

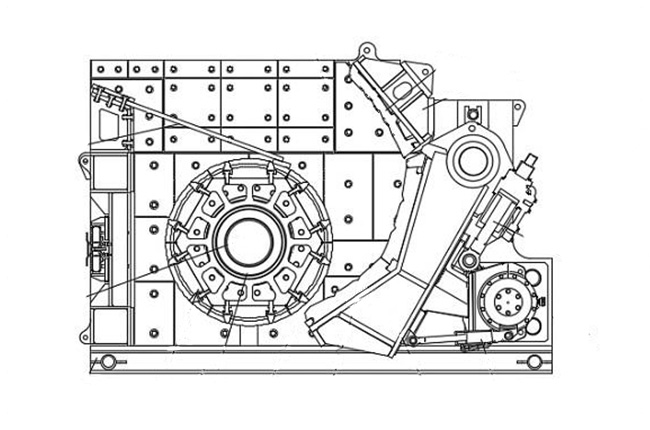

The Horizontal Gyratory Crusher has a more complex design, including a heavy-duty frame, eccentric shaft, and a crushing cone.
The machine is designed to handle larger capacities and is often used in high-volume processing plants. Its sophisticated design requires specialized maintenance and operation, making it more suitable for larger, industrial-scale applications.

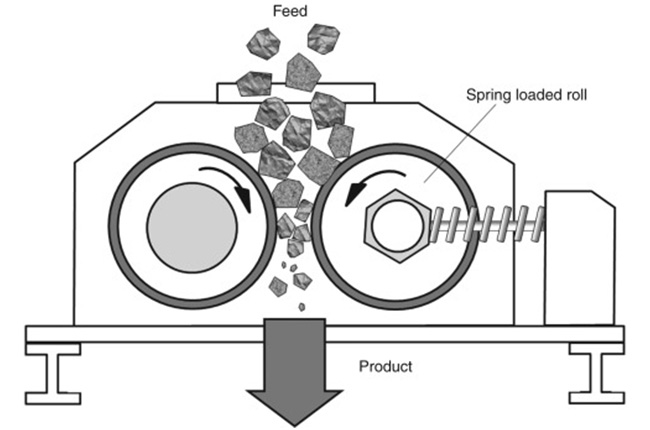

The working principle of a Double Roller Crusher is based on compression.
Material is fed between the two rollers, which rotate in opposite directions, pulling the material through and crushing it between the rollers.
This method is particularly effective for producing uniform-sized particles with minimal fines.
The Horizontal Gyratory Crusher also operates on the principle of compression but in a more complex manner.
The crushing cone, mounted on an eccentric shaft, moves in a circular motion, crushing the material against the fixed concave surface.
This design allows for continuous operation and is highly effective for handling large, hard materials.
| Parameters | Double Roller Crusher | Horizontal Gyratory Crusher |
| Crushing Ratio | 3-5 | 6-13.5 |
| Feed Size | ≤200mm | ≤1200mm |
| Output Size | 1-20mm | 70-250mm |
| Applicable Material Hardness | ≤150MPa | ≤320MPa |
Simple Operation: The design is user-friendly, allowing for easy installation and maintenance.
Consistent Product Size: Ideal for producing uniform-sized particles with minimal fines, making it suitable for applications requiring precise product specifications.
Cost-Effective: Lower initial investment and operational costs make it an attractive option for smaller operations.
High Capacity: Capable of processing large volumes of material, making it suitable for high-production environments.
Advanced Crushing Mechanism: The machine's design allows for continuous operation, reducing downtime and increasing efficiency.
Durability: Built to withstand the rigors of crushing hard materials, resulting in a longer operational lifespan.
This crusher is commonly used in the coal, chemical, and cement industries, particularly for the fine crushing of brittle materials. It is ideal for applications where precise product size and shape are critical.
The Horizontal Gyratory Crusher is widely used in mining, metallurgy, and large-scale construction projects. It is best suited for handling tough, abrasive materials like iron ore, copper ore, and granite, where high crushing ratios and large capacities are required.
The Double Roller Crusher is relatively low-cost in terms of both initial investment and maintenance. Its simple design means that wear parts are easily accessible and replaceable, minimizing downtime and repair costs.
While the Horizontal Gyratory Crusher offers higher capacity and performance, it comes with a higher initial investment and maintenance costs. Specialized knowledge is required for maintenance, and the replacement of parts can be more time-consuming and expensive.
Choosing between a Double Roller Crusher and a Horizontal Gyratory Crusher depends largely on the specific requirements of your project. For smaller operations requiring consistent, fine crushing with lower costs, the Double Roller Crusher is an excellent choice. However, for large-scale, high-capacity projects dealing with hard, abrasive materials, the Horizontal Gyratory Crusher offers superior performance and durability.
