Heavy Hammer Crusher

Application: limestone, coal, salt, chalk, gypsum, alum, brick, tile, coal gangue, and wood and paper with strong fiber structure, flexibility and toughness or asbestos cement waste in recycling asbestos fibers, and so on.

  • Application: limestone, gypsum, brick, tile, coal gangue, cement waste.
  • Feed Size: ≤1600mm
  • Capacity: 50-4500T/H

I. Description

The heavy hammer crusher developed by Xinxiang Dingli has advanced structure, reliable performance, smooth operation and low energy consumption. The aggregates with particle size of 600-1200 mm can be crushed to less than 25mm at one time. Heavy hammer crusher is suitable for crushing limestone and other medium hardness and brittle materials with compression strength not exceeding 150 MPa and calcium content higher than 40% such as limestone, coal, salt, chalk, gypsum, alum, brick, coal gangue.

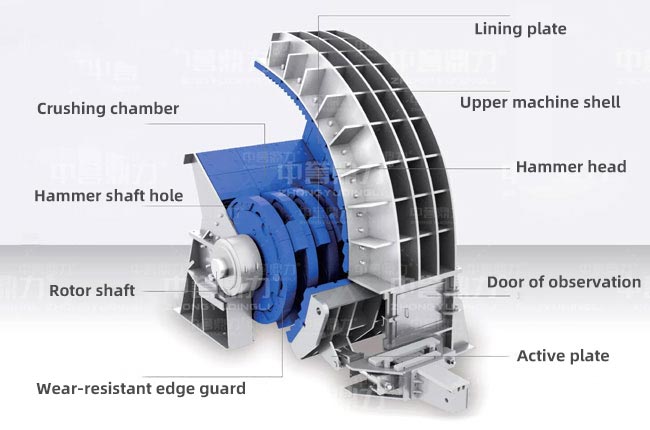

II. Structure

It is composed of shell, rotor, strike board, hammer, bracket, lining plate and other parts.

III. Operation Principle

The motor drives the rotor to move at high speed in the crushing cavity. The aggregates are feed into the machine from the upper feed opening and crushed after being hit, impacted, sheared and grinded by rotating hammers. The crushed particles with the size less than the mesh will be discharged through the screen plate in the lower part of the rotor. Meanwhile, the coarse grains with the size larger than the mesh continue to stay on the screen plate for repeated grinding by the hammers and finally are discharged out of the machine through the screen plate.

Features

Patented Product
Based on mechanical principles of ordinary hammer crusher, impact crusher and VSI crusher, Dingli has designed heavy hammer impact crusher with thirty years of experience in manufacturing mining equipment.
High Capacity
The crushing chamber is designed in line with dynamics principle, which can increase the throughput by 30%. The hourly capacity of our crusher can be up to 3000 tons.
Low Cost
With integrated function of crushing and shaping, the heavy hammer crusher of Dingli can crush the material into required size at one time, which reduces 35 % of equipment investment.
Adjustable Discharge
Dingli crusher uses wrench to adjust the discharging bolts, which reduces equipment damage and abrasion of hammers and increases the service life of machine by 4-6 times.
Solid & Durable Parts
With solid snail shell and reinforcing bar on the back, the crusher can suffer strong external impact. Moreover, it adopts high-quality wear parts, such as manganese-chromium alloy hammers, all-round lining plates, and never-damaged hammer discs.
Easy Maintenance
The crusher is equipped with 8 hammer shaft holes, 4 for backups. It is easy to observe functioning of the machine from the observation doors. The hydraulic coupling facilitates the replacement of hammers and shafts. Tightly bolted wear parts can be easily disassembled.

Customer Production Sites

3000t/h Stone Production Line
3000t/h Stone Production Line
Equipment:PCZ1512 heavy hammer crusher, DLPC1622 integral form crusher...
Capacity:3000tph
LEARN MORE
1000T/H Construction Aggregate Production Line
1000T/H Construction Aggregate Production Line
Equipment:DLPCZ1916 heavy hammer crusher...
Capacity:1000tph
LEARN MORE
3000t/h Sand Aggregate Production Line
3000t/h Sand Aggregate Production Line
Equipment:heavy hammer crusher PCZ2125, vibrating screen...
Capacity:3000tph
LEARN MORE
3000t/h Pebble Sand Production Line
3000t/h Pebble Sand Production Line
Equipment:horizontal rotary crusher, impact crusher, ...
Capacity:3000tph
LEARN MORE
more

Heavy Hammer Crusher Related Products

Impact Crusher

Impact CrusherCapacity: 250-750t/h

Single Cylinder Hydraulic Cone Crusher

Single Cylinder Hydraulic Cone CrusherCapacity: 20-1500t/h

Heavy Hammer Crusher

Heavy Hammer CrusherCapacity: 50-4500T/H

Horizontal Rotary Fine Crusher

Horizontal Rotary Fine CrusherCapacity: 800-1600t/h

Technical Data of Heavy Hammer Crusher

Technical Parameters of Hammer Crusher (Heavy Type)

ModelRotor Diameter×Length(mm)Feed Opening Width×Length(mm)Feed Size(mm)Capacity(t/h)Power(kw)Machine Size Length×Width×Height(mm)
PCZ-13081310×790850×800≤600100-1601322818×2100×2390
PCZ-15101500×9501000×900≤700160-210132×23260×2414×2750
PCZ-15121500×11601200×900≤750250-320160×23260×2624×2750
PCZ-16151650×14521500×1200≤1000420-500200×23456×2915×3185
PCZ-16201660×19002000×1200≤1200800-1000400×23500×3100×3200
PCZ-18201800×19642000×1200≤12001000-1200450×23270×3210×3520
PCZ-21252100×24862600×1690≤16002000-250012503728×4565×4667


Technical Parameters of Hammer Crusher (Standard Type)

ModelRotor Diameter×Length(mm)Feed Opening Width×Length(mm)Feed Size(mm)Capacity(t/h)Power(kw)Machine Size Length×Width×Height(mm)
PC-0706700×570618×510≤40050-70751950×1340×1480
PC-0808800×750780×610≤50080-1001322280×1790×1670
PC-0910900×10001070×750≤600150-200110×22600×2200×1940
PC-10121000×11801255×810≤650250-300132×22800×2310×2210
PC-12131200×12801350×900≤750300-350160×22970×2580×2510
PC-12161270×14901530×920≤750400-500200×23070×2840×2580
PC-12201220×19502000×900≤750500-600220×23080×3380×2580


Note: specifications are subject to change without notice. Please refer to the actual data of machine.
