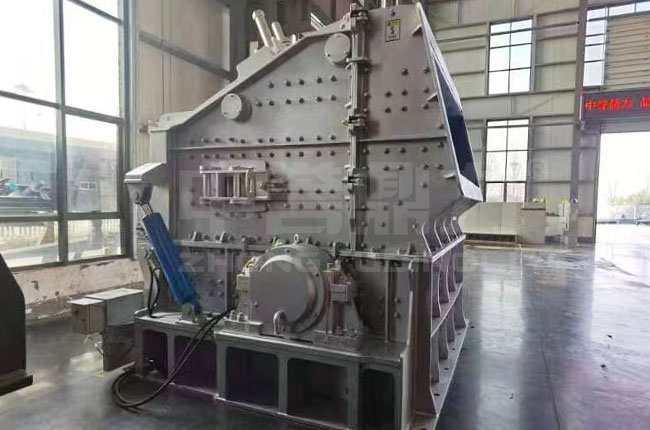

Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderDLHCS impact crusher used in the crushing production line for secondary crushing, mainly rely on impact to complete the crushing of materials, equipment with simple structure, uniform discharge particle shape, hydraulic control, easy replacement of wearin
DLHCS impact crusher mainly uses the crushing principle of impact energy, the rotor is driven by the motor to rotate at a high speed, the material enters the chamber and falls into the plate hammer working area, the plate hammer is driven by the rotor to rotate rapidly, impact the material is broken, and then the material is thrown to the counter lining plate on the inner wall of the chamber, after being bounced to the plate hammer, at the same time, the material collides with each other in the chamber. After repeated crushing, the material that meets the requirements of finished material is discharged from the discharge port.
Heavy rotor design, the plate hammer seat is thick and firm, so that the rotor by the rotation inertia and impact crushing force, crushing ratio is large, the product grain shape is good
Rotor through the overall finishing, calibration and other manufacturing processes, the equipment runs more smoothly;
The shell is equipped with a hydraulic cavity device, which is more convenient for equipment maintenance and parts replacement;
The rotor is equipped with alloy reguard, and the replacement is convenient, reducing the impact of materials on the rotor itself, and extending the service time of the rotor;
Discharge is adjustable
Automatic refueling
Widely used
Finished grain shape
Impact CrusherCapacity: 250-750t/h
Single Cylinder Hydraulic Cone CrusherCapacity: 20-1500t/h
Heavy Hammer CrusherCapacity: 50-4500T/H
Horizontal Rotary Fine CrusherCapacity: 800-1600t/h
Technical Parameters of Hammer Crusher (Heavy Type)
| Model | Rotor Diameter×Length | Feed Opening （mm） | Feed
Size （mm） | Power （kw） | Capacity （t/h） |
|---|---|---|---|---|---|
| DLHCS1315 | 1380×1500 | 1540×770 | ＜250 | 250-315 | 250-320 |
| DLHCS1320 | 1300×2000 | 2040×770 | ＜250 | 315或2×200 | 300-400 |
| DLHCS1520 | 1500×2000 | 2090×1000 | ＜250 | 2×200或2×250 | 400-500 |
| DLHCS1523 | 1500×2300 | 2390×1000 | ＜250 | 630 | 400-600 |
| DLHCS1630 | 1600×3000 | 3000×1000 | ＜250 | 800 | 650-750 |
Note: specifications are subject to change without notice. Please refer to the actual data of machine.
