YKQ Vibrating Screen

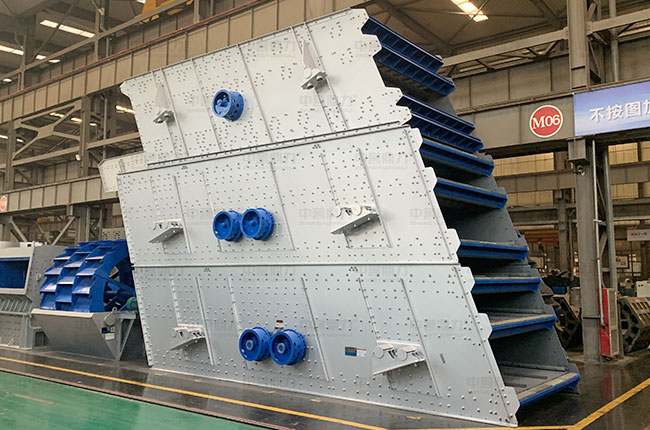

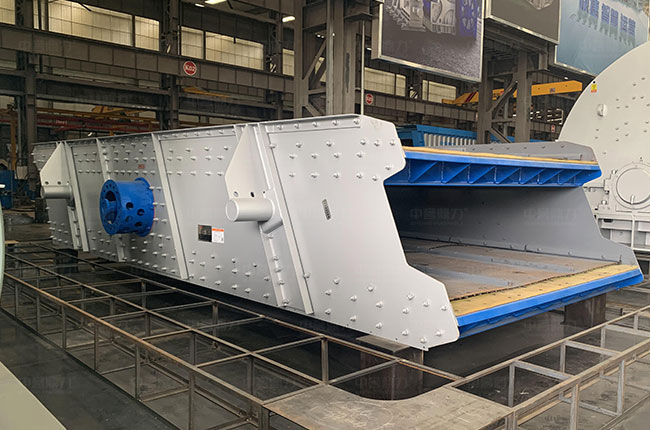

YKQ light medium vibrating screen belongs to a round vibrating screen, by a single motor through the flexible coupling drive inlaid on the screen frame of two groups of vibrator rotation vibration, the series of circular vibrating screen has a large capac

Application:granular and powder materials of mining, sand, chemical, food, metallurgic, digging, building, grain, grinding, fertilizer, and coal industries.

Feed Size: ≤200mm

Capacity: 40-450t/h

If you are interested in our products, please email us at dingli@dinglicrusher.com

Use a wide range of outstanding advantages

YKQ light medium vibrating screen size is 2-50mm, used in sand aggregate, cement aggregate, coal and electricity industries below 200mm size material screening, the use of large clearance bearing grease lubrication vibrator, with simple structure, stable performance, large capacity, screening effect is good, cost-effective, low noise, easy maintenance and other advantages.

Multiple guarantee, prolong the service life

Spring support

The vibrating screen support is made of rubber composite spring material, which can improve the stability of the equipment for low impact force;

Bearing material

Bearing is one of the important parts of the vibrating screen, the YKQ lightweight vibrating screen using bearings, excellent quality, longer service life;

Processing technology

The whole is placed on the gantry milling and boring machine for processing, the height of the boring on both sides of the screen body is the same, and the motor impact force;

Steel plate material

The material trough made of alloy steel plate is suitable for conveying high temperature, serious wear and corrosive materials.

Unique eccentric block structure

The vibrator adopts external eccentric structure, relative to the shaft eccentric vibrator to improve the vibration, reduce the weight of the vibrator, convenient maintenance and replacement; By adjusting the number of counterweight block to adjust the amplitude can meet the different specifications of vibration screen exciting force requirements; The vibrator is connected through the universal joint coupling, which has the advantages of flexible installation and replacement and long service life.

Features

Yield adjustable

Flange shaker, maintenance more convenient, by adjusting the eccentric block Angle can adjust the vibration intensity, improve or processing capacity.

cost-effective

Light screen box for the whole steel plate, no welding, bearing using bearings, transmission shaft using transmission shaft, screen using spring steel braided screen, parts quality excellent, longer service life, cost-effective.

Easy maintenance

Screen machine structure is simple, the space between the layer and the layer is large, convenient to replace the screen, convenient and quick maintenance.

Multiple specifications

According to the demand can be installed more than four layers of aperture is not the same screen, at the same time out of five different specifications of finished materials.

Technical Data of YKQ Vibrating Screen

Technical Parameters of YKQ Parameter

Model	Number of deck	Exciter	Screen Area （㎡）	Inclination （°）	amplitude （mm）	Capacity （t/h）	Power （kw-6）
DL2YKQ1860	2	JF90	10.8	27	5-7	40-250	15
DL2YKQ2060	2	JF90	12	27	5-7	50-350	15
DL2YKQ2260	2	JF90	13.2	27	5-7	60-380	15
DL2YKQ2270	2	JF90	15.4	27	5-7	60-380	18.5
DL2YKQ2460	2	JF90	14.4	27	5-7	70-400	15
DL2YKQ2470	2	JF90	16.8	27	5-7	70-400	18.5
DL2YKQ2660	2	JF90	15.6	27	5-7	80-450	18.5
DL2YKQ2670	2	JF90	18.2	27	5-7	80-450	22
DL3YKQ1860	3	JF90	10.8	27	5-7	40-250	18.5
DL3YKQ2060	3	JF90	12	27	5-7	50-350	18.5
DL3YKQ2260	3	JF90	13.2	27	5-7	60-380	18.5
DL3YKQ2270	3	JF90	15.4	27	5-7	60-380	22
DL3YKQ2460	3	JF90	14.4	27	5-7	70-400	18.5
DL3YKQ2470	3	JF90	16.8	27	5-7	70-400	22
DL3YKQ2670	3	JF90	18.2	27	5-7	80-450	22

Note: specifications are subject to change without notice. Please refer to the actual data of machine.
