Belt Conveyor Introduction Belt conveyor, also known as tape conveyor or conveyor machine, is indispensable economic material conveying equipment for the continuous production lines.

conveying crushed granite, cobble, basalt, and limestone, iron ore in stone quarries, metallurgy, building materials, beneficiation and mining industries.

Belt width: 400-1600mm

Capacity: 40-3000t/h

If you are interested in our products, please email us at dingli@dinglicrusher.com

Working principle

Belt conveyor is a kind of friction drive to transport materials in a continuous way of machinery, mainly composed of frame, conveyor belt, roller, roller, tensioning device, transmission device, etc. When working, the driving drum is driven by the motor through the reducer, and the conveyor belt is driven by the friction between the driving drum and the conveyor belt. The driving drum is generally installed in the discharge end, in order to increase traction, conducive to drag. The material is fed by the feeding end, falls on the rotating conveyor belt, and is driven to the unloading end by the friction of the conveyor belt.

Performance characteristics

maintenance

The use of parts, later if the parts damaged quick and convenient replacement

rack

The frame adopts double-layer structure, which is firm and stronger than the same type of equipment

capacity

Large equipment throughput, B400-B1600 models, throughput up to 3000 tons per hour

material

Belt material with flame retardant tape, even if the fire, can quickly control the fire to avoid the spread

All kinds meet different needs

The roller is an important part of the conveyor, according to the function of the transmission drum and reversing drum, the transmission drum and internal drive type and external drive type two, internal drive type is we often say electric rolling, the specific use of which type to choose according to the field terrain and production line equipment configuration factors, can meet the needs of most users.

The installation form is flexible and easy to use

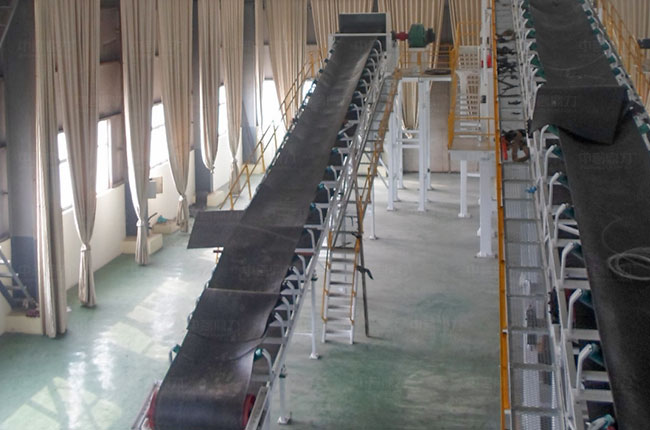

Belt conveyor installation form flexible, can be horizontal or Angle installation use, can be used in coal mine roadway, well transportation system, stone open-pit mining and mineral processing, according to the site situation and transportation requirements, can choose a single conveyor, can also be combined into a horizontal or Angle conveyor system, the installation form is changeable, can suit the needs of different line layout form.

Features

Stable operation: Coal mine, power plant, coal washing plant, stone factory, cement factory and other occasions to transport materials need continuous uninterrupted work, belt conveyor can be in a long time continuous work to maintain stable operation;

Low energy consumption: Materials are transferred on the conveyor belt, and there is almost no movement relative to the conveyor belt. The running resistance of the conveyor has high production line rate, low energy consumption, and the production is conducive to the production cost.

Flexible use: A bit of material or more material, can also be discharged to a number of fixed points and sections, the cloth machine is a good form of expression, can at the same time in the belt length direction of any point uniform discharge;

Long service life: The belt has some properties, conveying all kinds of stone in mine production, small wear, long service life;

Technical Data of Belt Conveyor| Conveyor Machine

Model	width （mm）	speed （m/s）	Capacity （t/h）
DTII/DTII(A)	B650	1.25-2.5	100-350
DTII/DTII(A)	B800	1.25-2.5	150-450
DTII/DTII(A)	B1000	1.25-2.5	300-600
DTII/DTII(A)	B1200	1.25-3.15	500-1200
DTII/DTII(A)	B1400	1.25-3.15	700-1800
DTII/DTII(A)	B1600	1.25-3.15	900-2000
DTII/DTII(A)	B1800	1.25-3.15	1200-2500
DTII/DTII(A)	B2000	1.25-3.15	1500-3500
