Spiral Sand Washer

DLLXS spiral sand washing machine equipment can be used for cleaning stacked materials in industries such as sand and gravel plants and mines, and can play an efficient role in sand washing. It has the characteristics of simple structure, simple and clear

Application: sand and gravel factories, mines, building materials, concrete mixing plants, etc

Feeding Size: ≤10mm

Capacity: 70-320t/h

If you are interested in our products, please contact usWhatsapp:+8618336065555Email:dingli@dinglicrusher.com

I. Description

DLLXS spiral sand washing machine is an efficient and energy-saving equipment for sand and gravel cleaning. It can remove impurities on the surface of sand and gravel, and dehydrate by breaking the water vapor layer on the surface of sand and gravel, thus achieving efficient sand washing. This device has the characteristics of simple structure, efficient cleaning, and easy operation.

III. Operation Principle

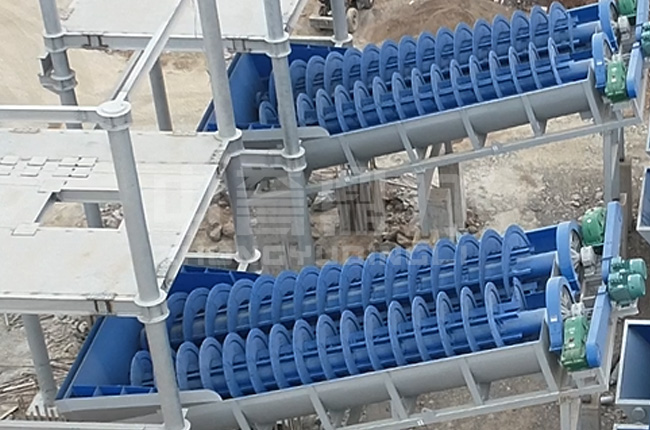

The material falls vertically from the top of the equipment into the water tank of the spiral sand washing machine. Under the rotation of the spiral blades, the material quickly, fully, and uniformly "fuses" with the water. At the same time, the water vapor layer on the surface of the material is also destroyed, causing the soil, fine powder, and other impurities in the material to quickly separate from the sand. Soil, fine powder, and other impurities flow out of the overflow pipe of the equipment with the water flow, while finished materials are pushed from the water to the high discharge outlet by spiral blades.

Features

Structural Stability: The transmission system adopts a combination of reducer and motor, with high transmission efficiency and no slipping; The tank adopts a reinforced plate layout and is equipped with replaceable wear-resistant lining plates. The overall design center of gravity is low to ensure that the equipment can still be stable on the foundation under vibration conditions.

Low Power Consumption: The low power consumption is due to its low-speed sliding friction working mechanism, efficient hard tooth transmission, and smooth material conveying design. By using the "water grinding technique" to clean and push out the sand, it not only meets the cleaning effect but also greatly reduces power consumption.

High Cleanliness: The high cleanliness is attributed to the synergistic effect of "soaking, stirring, peeling, and overflowing", where soaking softens the mud; The stirring of the blades causes the sand particles to rub against each other, mechanically removing impurities; The overflow of water carries away suspended dirt; Further purification is achieved through countercurrent rinsing.

Good Product Quality: The produced product effectively removes soil and impurities, with low mud content. Reasonable grading, stable fineness modulus, and no cut-off. Good particle shape, clean surface, conducive to bonding with cement slurry. Stable moisture content, easy to store and accurately mix ingredients.

Low Failure Rate: Single rotational motion is inherently less prone to damage; Slow wear, minimal impact, and long component lifespan; The key parts have been strengthened and wear-resistant treated. Equipped with overload protection, not afraid of accidental jamming. Proper selection and use can often maintain efficient and stable operation for several years.

Easy To Operate: The operation can be summarized as checking whether the ammeter is normal and whether the material is clean. Listen to the sound of the device running smoothly without any abnormal noise. Regularly add lubricating grease to the bearings. Reduce reliance on highly skilled workers and ensure the stable operation of the project.

Customer Production Sites

3000t/h Pebble Sand Production Line

Equipment:spiral sand washing machine, impact sand making machine, Plate feeder...

Capacity:3000tph

LEARN MORE

2000t/h Sand production line

Equipment:spiral sand washing machine...

Capacity:2000tph

LEARN MORE

Annual production line of 10 million tons of cobblestones

Equipment:spiral sand washing machine...

Capacity:10 million tons

LEARN MORE

2500 tons of limestone crushing production line

Equipment:DL2LXS1890 spiral sand washing machine...

Capacity:3000tph

LEARN MORE

Technical Data of Spiral Sand Washer

Model	Feed Size(mm)	Speed(r/min)	Power(kw)	Sink Size Length×Width×Height(mm)	Capacity(t/h)
DLLXS1590	≤10	13	30	10500×2675×2350	70-110
DLLXS1890	≤10	11.5	37	10596×3045×2350	130-160
DLLXS2011	≤10	10	37	12175×3280×2950	180-210
DL2LXS1890	≤10	11.5	37×2	10596×4710×2350	260-320

Note: specifications are subject to change without notice. Please refer to the actual data of machine.

Spiral Sand Washer

I. Description

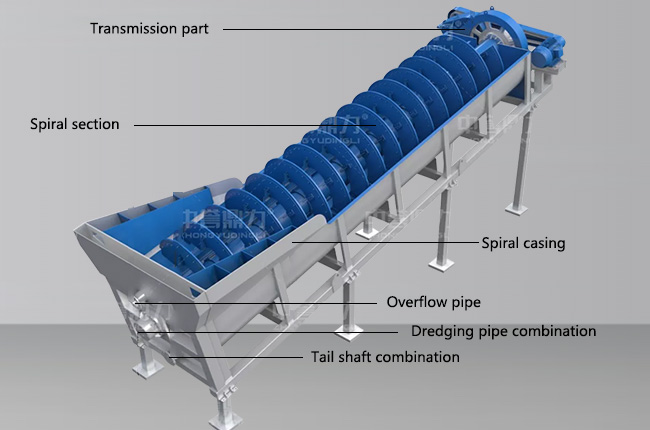

II. Structure
