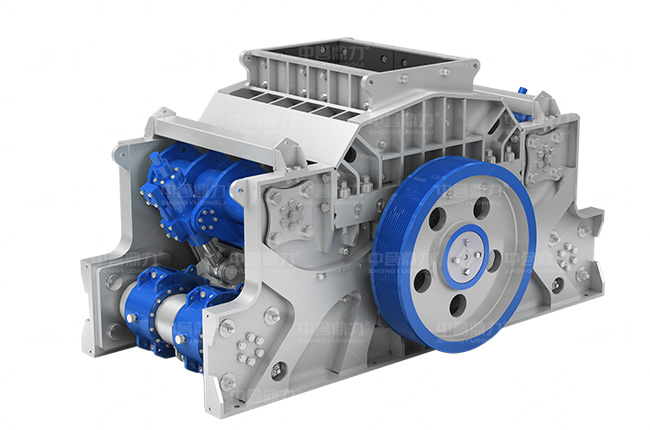

Horizontal Rotary Fine Crusher

DLHGC-M series horizontal rotary medium fine crusher is a kind of hard rock medium fine crushing equipment which is launched by Zhongyu and is used to replace the second and third level crushing process in the traditional cone machine production line.

Suitable materials: iron ore, copper ore, limestone, granite, basalt, diabase, shale, quartz, river pebble
Feed size: ≤400mm
Capacity: 800-1600t/h

If you are interested in our products, please email us at dingli@dinglicrusher.com

Introduction
Related Projects
Technical Data

Extended Constant Crushing Chamber

The length of the crushing chamber of DLHGC-M horizontal cycle is longer than the sum length of the cone broken medium and fine crushing chamber. It can accommodate more materials at one time, with a production capacity of up to 1600 tons per hour. It can be used for the second and third crushing links of large high hardness ore production line. And in the process of production, the grinding mortar wall and crushing ratio wear uniform, crushing cavity type is not easy to deformation.

Laminating Crushing

The ore achieves multi-level crushing in the crushing chamber, the crushing ratio is large, and the materials collide with each other in the crushing process, forming self-crushing, which is conducive to extending the service life of the wearing parts, low maintenance frequency in the later period, and low replacement cost of parts.

Intelligent Control

The supporting intelligent control system can realize scientific parameter setting, real-time operation digital display, one-button start-stop, hydraulic control and other functions, high production efficiency.

Consultation Details

Double Overload Protection

Pressure and displacement sensors realize double overload protection. When overload occurs in the equipment, the pressure and displacement sensor in the safety hydraulic cylinder can make the equipment still operate normally, and can realize the size adjustment and reset of the ore discharge port.

Consultation Details

It's good, but it's not just that...

High yield: Inside there are two independent crushing chamber, further improve the crushing force of the equipment, large output, high production efficiency.

Stable Operation: The rotation speed of the rotary crushing roll is low, and the rotary inertia force is relatively large, so that the equipment can produce a lower energy peak when used, and the start, stop and operation are more stable.

Automatic clear cavity: Through the hydraulic adjustment device to achieve intelligent automatic cleaning machine cavity, and achieve automatic reset, no manual operation, save time and effort.

Particle Size Stability: The design of constant discharge port makes the particle size of finished material more stable after crushing.

Horizontal Rotary Fine Crusher Related Products

Impact CrusherCapacity: 250-750t/h

Single Cylinder Hydraulic Cone CrusherCapacity: 20-1500t/h

Heavy Hammer CrusherCapacity: 50-4500T/H

Horizontal Rotary Fine CrusherCapacity: 800-1600t/h

Technical Data of Horizontal Rotary Fine Crusher

Model	Feeding Port Size （mm）	Feed Size （mm）	Drain Port Adjustment Range CSS （mm）	Capacity （t/h）	Power （kw）	Weight （t）
HGC600M	1840×1054	≤400	50-120	800-1600t/h	800	114

Note: Parameters are subject to change without prior notice. Actual data shall prevail.
