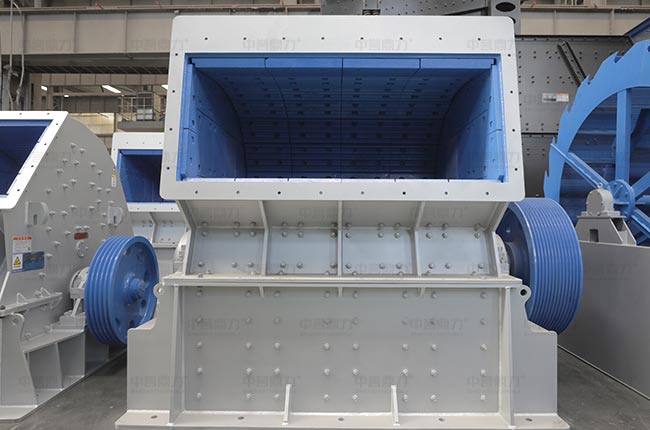

On the basis of drawing lessons from international advanced technology, the carefully designed hammer crusher can directly crush the aggregate of 600mm-1200mm particle size into 25mm or less.
By absorbing advanced foreign and domestic technology, Xinxiang Dingli elaborately designs a kind of special primary hammer crusher that can directly crush the aggregates with particle size of 600mm-1200mm into 25mm or less. It is suitable to crush the materials with compressive strength less than 200MPa and calcium content over 40%.With advanced and stable capability, hammer crusher can be used in cement, sand, coal cleaning, building materials, chemical industry, electric power, metallurgy, road construction and compound fertilizer industries.
Hammer crusher consists of machine shell, rotor, strike board, hammer, bracket, lining plate and so on.
The motor drives the rotor to rotate in the crushing cavity at a high speed. Materials are fed from the upper inlet into the inside of the machine, and then crushed by hammers’ striking, impacting, shearing, and grinding. There is a sieve plate under the rotor so that the fractions smaller than sieve size can be discharged. The coarse grains with size larger than the mesh continue to stay on the screen plate for being hit and grinded again by the hammers until they meet the requirements for finished materials.
Technical Parameters of Hammer Crusher (Heavy Type)
Model | Rotor Diameter×Length (mm) | Feed Opening Width×Length(mm) | Feed Size(mm) | Power (kw) | Capacity (t/h) | Machine Size Length×Width×Height(mm) |
---|---|---|---|---|---|---|
DLPCZ1308 | 1310*790 | 800*850 | ≤500 | 132kw-4 | 100-160 | 2818*2100*2390 |
DLPCZ1512 | 1500*1160 | 1200*900 | ≤600 | (160kw-4)*2 | 250-400 | 3220*2520*2800 |
DLPCZ1615 | 1675*1510 | 1480*1200 | ≤650 | (220kw-4)*2 | 400-800 | 3665*2915*3440 |
DLPCZ1815 | 1776*1510 | 1480*1200 | ≤650 | (250kw-4)*2 | 400-900 | 3822*2912*3436 |
DLPCZ1820 | 1800*1964 | 2000*1200 | ≤800 | 800kw-6 | 800-1500 | 3474*3822*3520 |
DLPCZ2020 | 1920*2000 | 2010*1200 | ≤800 | 800kw-6 | 1200-1600 | 4160*3920*3520 |
DLPCZ2122 | 2130*2260 | 2240*1505 | ≤1000 | 1000kw-6 | 1800-2200 | 4990*4385*4360 |
DLPCZ2125 | 2100*2486 | 2600*1690 | ≤1200 | 1250kw-6 | 2000-3000 | 5057*4565*4666 |
DLPCZ3032 | 3000*3220 | 3240*1840 | ≤1200 | (1250kw-6)*2 | 4500-6000 | 6710*6122*6340 |
Technical Parameters of Hammer Crusher (Standard Type)
型号 | Rotor Diameter×Length (mm) | Feed Opening Width×Length(mm) | Feed Size(mm) | Power (kw) | Capacity (t/h) | Machine Size Length×Width×Height(mm) |
---|---|---|---|---|---|---|
DLPC0910 | 900*1000 | 1070*750 | ≤150 | (110kw-4)*2 | 150-200 | 2600*2200*2050 |
DLPC1012 | 1000*1180 | 1255*810 | ≤200 | (132kw-4)*2 | 250-300 | 2800*2400*2300 |
DLPC1213 | 1200*1280 | 1350*900 | ≤200 | (160kw-4)*2 | 300-350 | 2970*2625*2580 |
DLPC1216 | 1270*1490 | 1530*920 | ≤250 | (200kw-4)*2 | 400-500 | 3070*2840*2580 |
DLPC1220 | 1220*1950 | 2000*920 | ≤250 | (250kw-4)*2 | 500-700 | 3080*3380*2580 |
DLPC1622 | 1580*2150 | 2290*960 | ≤300 | 630kw-6 | 600-900 | 4095*3495*2960 |
DLPC1826 | 1875*2490 | 2550*1080 | ≤300 | 800kw-6 | 800-1200 | 4085*4250*3400 |
DLPC2026 | 2000*2490 | 2550*1170 | ≤300 | 1000kw-6 | 1000-1500 | 4490*4260*3725 |
Note: specifications are subject to change without notice. Please refer to the actual data of machine.
