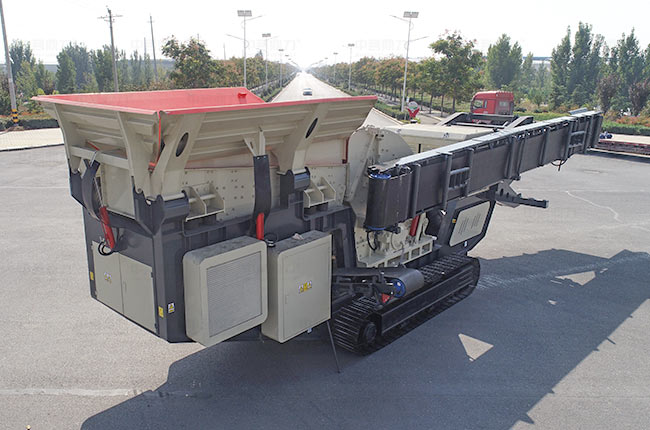

Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderMobile hammer Crushing Plant is produced to crush the soft stones. Design of tracked movable chassis， It is composed of a vibrating feeder, a vibrating feeder, a hammer crusher, a belt conveyor conveyor.
Mobile hammer crushing station is a kind of high efficiency, high integration, can be moved at any time crushing production line, Hourly production capacity of 40-500 tons, With external power supply type, oil-electric hybrid type, diesel type and other power configuration, mainly used in mining, metallurgy, energy, road and bridge projects, especially suitable for highway, railway, hydropower projects and other mobile stone operations.
This equipment can be used for single crushing production operations or in combination with mobile screening stations, mobile sand washing equipment, etc. to create sand and gravel production lines.
Combinable devices：Mobile screening station, mobile jaw crushing station, cone mobile crushing station
It can be fed by Excavator, Loader and Truck.
Designed with pedestrian corridors, Convenient control and maintenance platform. There are protection enclosures suitable for occupational safety.
Bunker covers can be opened and closed hydraulically.
Hammer crusher crushing chamber capacity, high crushing efficiency, breaking area wave downward pattern design, short time of material in the chamber.
The movable lining plate and the main lining plate of the upper housing form an open crushing chamber, The discharge size can be adjusted.
High stability
Large crushing ratio
Cool appearance
Intelligent pollution-free
Mobile hammer crushing stationCapacity: 40~500T/H
DLMC1512 Mobile hammer crushing station
| name | Model | Power（kw） | Other parameters | |
|---|---|---|---|---|
| Hammer crusher | DLPCZ1512 | 315 | Transportation L×W×H（mm）：14620×3200×3693 | |
| Vibrating feeder | ZGS1238 | 15 | Side excavation height（mm）：2000 | Main unloading height（mm）:3100 |
| Iron remover | RCYD-12 | 4 | Bin volume（m3）：8 | Larger side length（mm）：3766 |
| Main belt conveyor | B1200×10 | 11 | Production Capacity（t/h）：250-400 | |
| Return belt conveyor | B800×11 | 5.5 | Total equipment power（kw）：353 | Weight（t）：52 |
| Belt conveyor unearthed on side | B500×5.6 | 2.2 | Genset：cummins 112kw | |
DLMC1510G310Y crawler mobile crushing and screening station
| name | Model | Power（kw） | Other parameters | |
|---|---|---|---|---|
| Hammer crusher | DLPCZ1510 | 220 | Transportation L×W×H（mm）：20600×4000×3700 | |
| Vibrating feeder | ZGS1038 | 7.4 | Side excavation height（mm）：2000 | Side discharge height（mm）:3000 |
| Iron remover | RCYD-10 | 3 | Bin volume（m3）：90 | Larger side length（mm）：3500 |
| Main belt conveyor | B1000×14 | 11 | Production Capacity（t/h）：160-220 | |
| Belt conveyor unearthed on side | B500×2.8 | 1.5 | Total equipment power（kw）：281.9 | Weight（t）：62 |
| Return vibrating screen | 3YK1860 | 15 | Genset：cummins 112kw | |
| Return belt conveyor | B650×10.5 | 5.5 | ||
| Belt conveyor | B650×2.4×2 | 3 | ||
| Side discharging belt conveyor 1 | B650×6.3 | 4 | ||
| Side discharging belt conveyor 2 | B650×5.5 | 4 | ||
| Lower belt screening machine | B1200×6 | 7.5 | ||
