| Parameter Category | Specification Value |
|---|---|
| Model | PF1210 |
| Feed opening size | 400×1080 mm |
| Max feed size | ≤350 mm |
| Processing capacity | 70-130 t/h |
| Motor power | 6P 110 kW |
| Rotor specifications | Φ1250×1050 mm |
| Overall dimensions | 2680×2160×2800 mm |
| Equipment weight | 17.7 t |

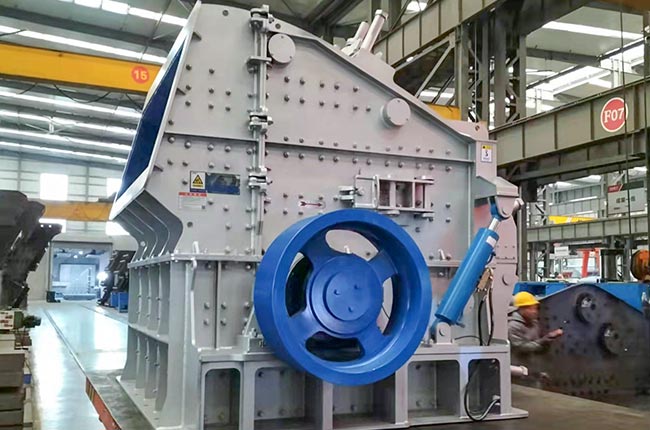

The PF1210 impact crusher features a large feed inlet and an expansive crushing chamber, capable of directly processing materials up to 350mm in size. It handles large, high-hardness materials efficiently, with minimal stone powder in the final product.
The gap between the impact plate and hammer can be selectively adjusted to precisely control output particle size, producing uniformly graded and well-shaped end products.
