| Parameter Category | Specification Value | ||||
|---|---|---|---|---|---|
| model | DLHPT300 | ||||
| Cavity type | C1 | C2 | M | F1 | F2 |
| Feeding port size (mm) | 265 | 240 | 190 | 145 | 120 |
| Max feed size (mm) | 230 | 210 | 150 | 105 | 80 |
| Minimum discharge port size (mm) | 25 | 20 | 16 | 13 | 10 |
| Capacity (tph) | 220 - 440 | 190 - 380 | 175 - 320 | 110 - 260 | 100 - 240 |
| Power (kw) | 220 | ||||
| Weight (t) | 20 | ||||

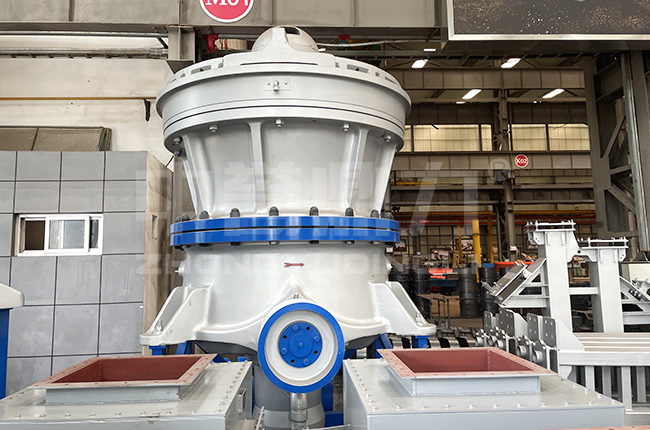

The DLHPT300 multi cylinder hydraulic cone crusher from Zhongyu Dingli has five chamber types, among which C1, C2, M, and F1 chamber types meet the requirement of producing 250 tons per hour. From a feed particle size of 230 millimeters to 145 millimeters; The particle size of the crushed discharge ranges from 25 millimeters to 13 millimeters, and the particle size of the feed is relatively large, so the particle size of the discharge will also be relatively large. The selection of cavity type can be based on the particle size results of the coarse crushing equipment.
If you want to choose the three types of crushing chambers C1, C2, and M, because their discharge particle size is relatively large and does not meet the specifications of sand and gravel aggregates, you also need to configure a fine crushing equipment for crushing processing. Such as DLZSJ1218 sand making machine equipment, DLVSI1140 impact crusher, etc.
F1 belongs to the fine crushing chamber type, and its discharge can be directly molded. But due to its feed particle size of 105 millimeters, the particle size is relatively small. Choose a coarse crushing equipment that matches its feeding requirements. For example: DLEV106 jaw crusher, etc.
Free consultation on related issues.
