Product data

SpecificationDetails
Nominal capacity99 - 298 mtph109 - 328 stph
Max. feed size400.0 mm15.6 in.
Motor power132 kW177 hp
Closed side setting (CSS) range24.0 - 54.0 mm0.9 - 2.1 in.
Eccentric throw range16.0 - 30.0 mm0.6 - 1.2 in.
Mantles (inner liners)A, B
Concaves (outer liners)MC, C, EC
No of chambers3
Weight13,098 kg28,872 lb
Automation (ASRi)Optional
Lubrication tankStandard
Offline lubrication filtration unitOptional


The chambers available are:


CS430-NOMINAL CAPACITY*(MTPH)



ConcaveECCMC
Max. feed size (mm)F90266222174
F100400334263
Max. motor power (kW)132
Eccentric tdrow (mm)
16-3016-3016-30
CSS (mm)16--99-154
19-128-174106-165
22117-135137-212113-176
25124-193146-226121-187
29134-208157-244130-202
32142-220166-258138-214
35149-231175-271145-225
38157-243183-285152-236
41164-255192-298159-247
44171-266201-272167-226
48181-282213-246176-204

51189-256--

54196-227--
Mantle
A/BA/BA/B

*Note: The processing capacity of the CS430 cone crusher may vary with different materials and feeding sizes.

Request a quoteMobiles tracked brochure

Our range cone crushers

CH430 Cone Crusher

CH430 Cone CrusherCH430

Nominal capacity26 - 215 mtph (29 - 237 stph)

Max. feed size 214.0 mm (8.4 in.)

Motor power 132 kW (177 hp)

Live Chat
CS840i Cone Crusher

CS840i Cone CrusherCS840i

Nominal capacity212 - 659 mtph (234 - 726 stph)

Max. feed size431 mm (17 in.)

Motor power330 kW (442 hp)

Live Chat
CH430 Cone Crusher

CH430 Cone CrusherCH430

Nominal capacity26 - 215 mtph (29 - 237 stph)

Max. feed size 214.0 mm (8.4 in.)

Motor power 132 kW (177 hp)

Live Chat

Case stories

350TPH Limestone Aggregate Production Line

This a complete crushing and screening plant for construction aggregate production including crushed stone and artificial sand. The output is 350 ton per hour and raw material is limestone. Please see the pics for its layout and equipment configured

5000TPD Gravel and Aggregate Production Line in Yichun Jian

Only configured with a heavy hammer crusher and four vibrating screens, this production line can produce six types of finished materials. Moreover the final products have sound grain shape

Tower like Sand making

The use of Zhongyu Dingli EPCO general contracting, more worry, Zhongyu Dingli has a full set of sand and stone processing equipment, as well as design institute design production line, mapping, civil engineering, installation, operation, after-sales and so on are very professional.

Additional product information

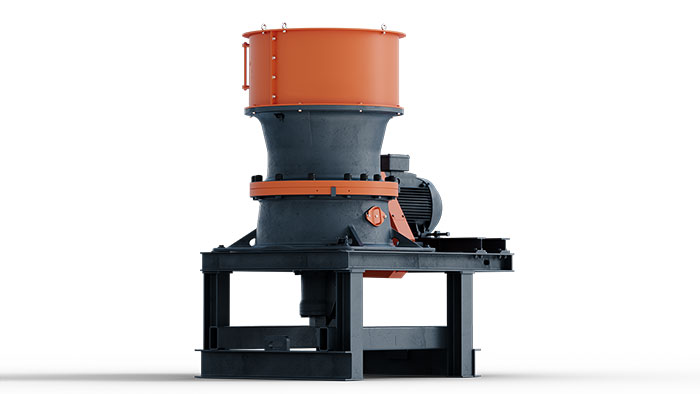

Stationary Cone Crushers 400 - 600 Series - CS430

Stationary Cone Crushers 400 - 600 Series - CS430

General Information

The CS430 cone crusher is equipped with a hydraulically supported main shaft that is supported at both ends. It is designed to handle a variety of crushing tasks efficiently.

Key Features

  • Hydroset™ system: Offers safety and setting - adjustment functions, enhancing the crusher's operational safety and flexibility.
  • ASRi™: Automatically adapts the crusher to feed conditions, optimizing its performance and productivity.
  • Unibody mainframe: Ensures optimal strength and reduces maintenance requirements, minimizing downtime and maintenance costs.
  • Lifting from above: Minimizes risks and enables safer maintenance procedures, creating a safer working environment.

Reliability and Protection Package

To combat the negative impact of unpredictability on productivity, the Reliability and Protection package provides comprehensive support. It includes on - site periodic inspections for proactive preventative maintenance recommendations and trend analysis. Additionally, it comes with an exclusive 1 + 2 years equipment warranty, safeguarding your investment and improving cost - effectiveness.
