Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderCone Crusher
| Model | SC100S | |
| Cavity Type | C1 | C2 |
| Feed Opening | 250 mm | 200 mm |
| Max Feed Size | ≤ 200 mm | ≤ 160 mm |
| Min Discharge Size | ≤ 22 | ≤ 19 |
| Capacity t/h | 85 - 170 t/h | 70 - 130 t/h |
| Motor Power | 90 kW | |
*Note: The processing capacity of the SC100S cone crusher may vary with different materials and feeding sizes.
Its seen the crushing equipment is neatly arranged at the customers production site and the dust proof facility is installed in all the conveying equipment. The dust prevention measure is especially required in the junction of equipment.
The project is located in China, put into operation in 2019, mainly processing limestone, the design output of 3000t/h, the annual output of 10 million tons, the production of 0-5, 1-2, 1-3 and other specifications of stone, the total investment of the project is 21069191.2240 US dollars.
Equipment configuration: PCZ1615 heavy hammer crusher ZGC1538 vibrating feeder 3YKZ3070 vibrating screen*2 sets. Performance feature: low investment cost high interests and high automation.

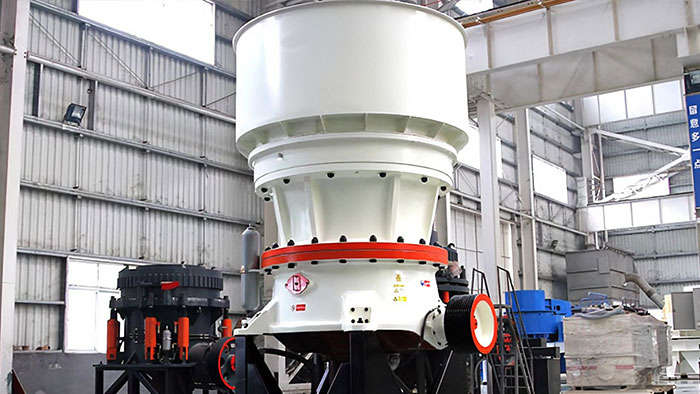

SC100S Single Cylinder Hydraulic Cone Crusher: Efficient Medium Crushing Solution
The SC100S Single Cylinder Hydraulic Cone Crusher is a high-efficiency medium crushing machine, widely used in industries such as metallurgy, construction, road building, chemistry, and silicate raw material crushing. This equipment achieves three critical functions—direct discharge opening adjustment, prevention of iron passing through, and cavity cleaning—through its unique bottom single-cylinder design. The SC100S has a maximum feed opening size of 250 mm and a processing capacity range of 85 - 170 t/h, making it ideal for medium crushing operations.
The SC100S uses a single hydraulic cylinder to raise and lower the moving cone, achieving multiple functions such as discharge opening adjustment, cavity cleaning, iron passing prevention, and overload protection. It is equipped with an electronic intelligent discharge opening control system, enabling more production process control and operational optimization. The main shaft is supported at both ends, allowing it to withstand greater crushing force and stroke, combined with a special crushing chamber shape adapted to the layer compression principle, which significantly improves crushing efficiency.
The SC100S employs a special crushing chamber shape and layer compression principle, producing particle-to-particle crushing effects. This results in a higher proportion of cubic-shaped products, fewer needle-like and flaky stones, and a more uniform particle size. The internal structure has excellent sealing performance, preventing dust and impurities from entering and extending the equipment's lifespan.
The SC100S offers multiple medium and fine crushing chamber types. By simply replacing the fixed cone, different crushing requirements can be met. The modular design makes the equipment more flexible, allowing for the conversion between coarse, medium, and fine crushing by changing the chamber type, thus improving production efficiency. Overload protection and automatic control functions ensure stable operation under various conditions.
