Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderCone Crusher
| model | ZX1400ZD |
| Max feed size | 215 mm |
| CSS Range | 25 - 50 mm |
| Capacity(by hour) | 200 - 500 t/h |
| Motor power | 220 kW |
| Weight | 25 t |
*Note: The processing capacity of the ZX1400ZD cone crusher may vary with different materials and feeding sizes.
As a large medium stone production line Xinxiang Dingli finally the design and configuration plan of 800t/h production line after combining local circumstance and material characteristics and all around inspection and research.
In production ba
As a 600tph fine gravel production line in Mangao Huishui Guizhou it can produce about 1000 ton finished stone which is mainly configured with ZG1550 vibrating feeder PCZ1615 heavy hammer crusher*2 ZSJ1218 dual sand shaping machine.

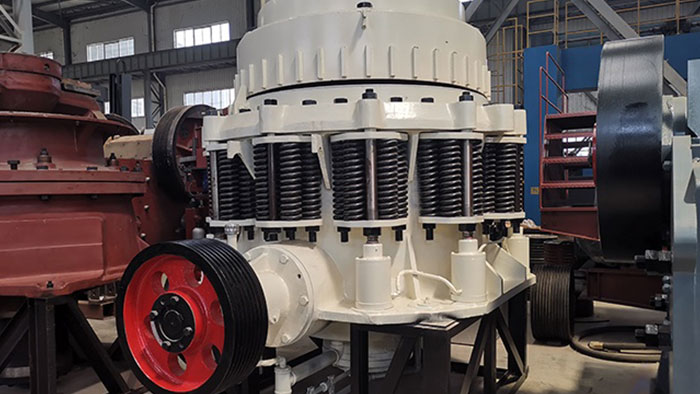

In the industrial crushing domain, the ZX1400Z - D crusher stands out as an effective solution for medium - coarse crushing requirements. It brings together a set of features that ensure reliable and efficient performance.
Model: ZX1400Z - D
Cavity Type: Medium Coarse
Stroke: 30 mm
Max. Feeding Size: 215 mm
Discharging Opening Adjusted Scope: 25 - 50 mm
Capacity (Open - Circuit Production): 200 - 500 t/h
Motor Power: 220 kw
Machine Reference Weight: 25 t
1. Effective Medium - Coarse Crushing: The ZX1400Z - D is engineered for medium - coarse crushing tasks. Its 30 - mm stroke enables it to exert appropriate force on materials. With a maximum feeding size of 215 mm, it can process moderately large pieces of raw materials. The open - circuit production capacity ranging from 200 to 500 t/h makes it suitable for mid - scale industrial operations, providing a consistent output of crushed materials.
2. Precise Discharge Adjustment: The ability to adjust the discharging opening within the 25 - 50 mm range offers high precision. Operators can fine - tune the particle size of the crushed products to meet the specific needs of subsequent processes, enhancing the crusher's adaptability across different industries.
3. Energy - Efficient and Stable: Powered by a 220 - kw motor, the crusher achieves a good balance between energy consumption and crushing efficiency. The stable operation of the motor reduces the likelihood of breakdowns, minimizing production disruptions and lowering maintenance costs.
4. Sturdy and Compact Design: Weighing 25 tons, the crusher has a sturdy yet relatively compact structure. This design allows it to withstand the mechanical stresses of medium - coarse crushing operations, such as impacts and vibrations, while also being space - efficient in industrial settings.
