Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw Crusher
| model | C200 |
| Feed opening | 1500 x 2000 mm |
| Max feed size | 1200 mm |
| CSS Range | 175 - 300 mm |
| Capacity(by hour) | 610 - 1510 t/h |
| Motor power | 400 kW |
| Dimensions | 6500 x 3990 x 4260 mm |
| Rotation speed of eccentric shaft | 200 r/min |
*Note: The processing capacity of the C200 jaw crusher may vary with different materials and feeding sizes.
This sand production line is equipped with DMCA mining dust collector and vibrating screen. The materials have been screened for at least twice before they enter into the next production stage. The DMCA dust collecting machine can collect m
Airplane Construction in Liu Panshui Guizhou chose 300tph aggregates production line. From the picture we get to know it chooses four mineral equipment of PCZ1512 heavy hammer crusher vibrating feeder and two efficient vibrating screens.
This gravel aggregates production line is built with local large mining as the support. After entering into the operation this large-sacle stone crusher plant will produce the gravel aggregate for meeting local market need.

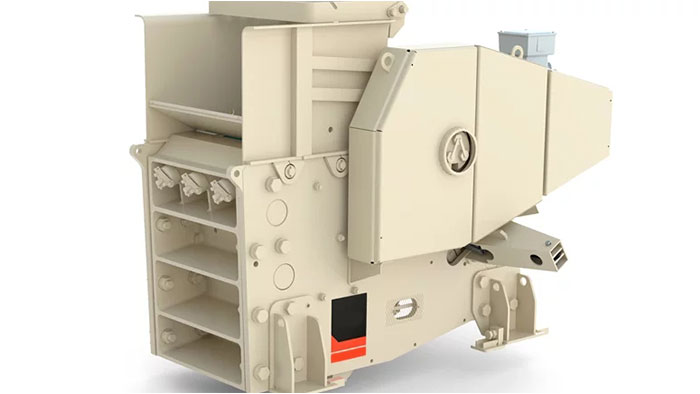

The C200 Jaw Crusher is a high-capacity and efficient crushing machine designed and manufactured by our company using advanced foreign technology. This European-style jaw crusher is capable of handling materials with a compressive strength below 320MPa and is widely used in mining, construction materials, cement, metallurgy, road construction, and chemical industries.
The C200 Jaw Crusher operates smoothly without vibration, ensuring stable and reliable performance. This feature minimizes wear and tear on the machine, extending its lifespan and reducing maintenance needs. The advanced design provides a reliable and efficient crushing solution for demanding applications.

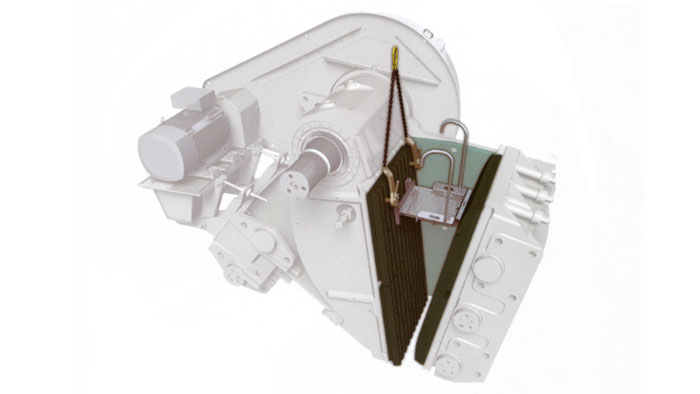

The C200 Jaw Crusher features a frameless structure with high-strength wall plates and precision-machined pins, forming a robust chassis that enhances load-bearing capacity. The moving jaw assembly, pulleys, and flywheels are all made from high-quality cast steel or cast iron, providing exceptional durability. The use of high-strength forged eccentric shafts and premium bearings ensures outstanding reliability.
The C200 Jaw Crusher has an optimized chamber design with well-coordinated feed opening dimensions and chamber height. The ratio of the feed opening length to width is carefully tested to maximize material throughput and minimize clogging issues.
The discharge opening adjustment mechanism uses a dual-wedge structure, making it easy and reliable to adjust. This allows users to quickly and conveniently change the discharge opening size, reducing downtime and improving operational flexibility.
