Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw crusher
| model | CJ659 |
| Feed opening | 1200 x 1500 mm |
| CSS Range | 150 - 350 mm |
| Capacity(by hour) | 400 - 1200 tph |
| Motor power | 200 - 250 kW |
*Note: The processing capacity of the CJ659 jaw crusher may vary with different materials and feeding sizes.
As we can see from this production line it is wholly adopted our companys equipment. By using of v-belt between crude and finished material it reduced the rates of adding additional equipment with very smooth production line.
As a centralized area of limestone Guangan has been established many gravel production lines and concentrate many huge stone production lines.
The project is under EPC general contract construction of Zhongyu and Denli, and tailor-made production line scheme for customers.

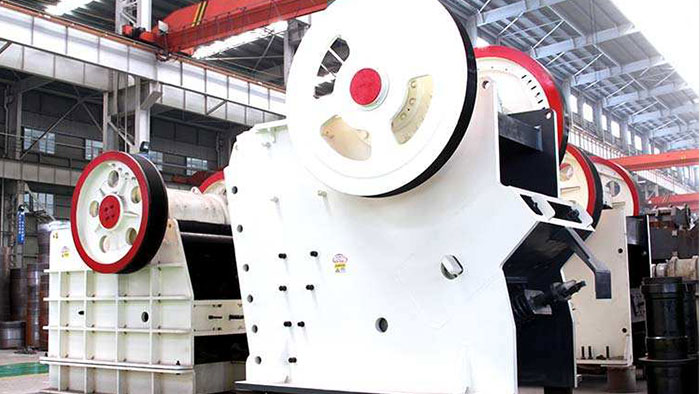

The CJ659 Jaw Crusher features a feed opening of 1200 x 1500 mm, discharge range of 150 - 350 mm, and a capacity of 400 - 1200 tons per hour, powered by a 200 - 250 kW motor. The CJ659 Jaw Crusher stands out with its outstanding performance and reliability, making it ideal for use in mining, smelting, building materials, and related fields.
The CJ659 Jaw Crusher features a symmetrical “V” shaped chamber design, large incline angle of toggle plate, large stroke, and reasonable rotational speed, resulting in larger feed sizes, higher output, more uniform particle size, and reduced wear on the jaws. The heavy-duty moving jaw assembly uses forged heavy eccentric shafts, heavy-duty rolling bearings, and a moving jaw body optimized via finite element analysis, ensuring high impact resistance and stability.
The CJ659 Jaw Crusher uses mechanical or hydraulic discharge adjustment mechanisms. The double wedge block adjustment system is simpler, safer, and faster compared to shim adjustment, saving downtime. Specialized rubber dampening devices secure the crusher, effectively absorbing vibration peaks while allowing vertical and longitudinal displacement, thereby reducing the impact on the foundation.
