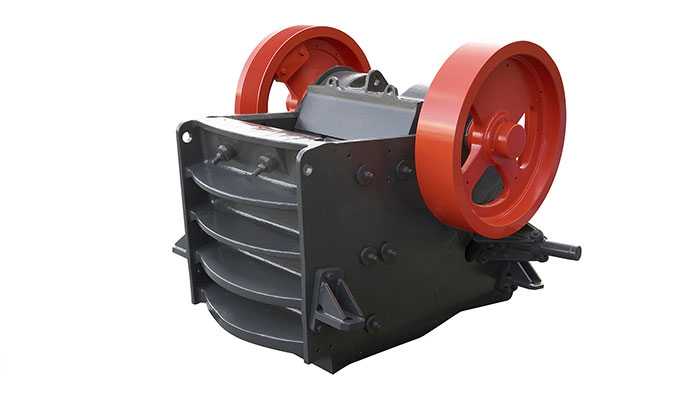

Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw crusher
| model | CJ96 |
| Feed opening | 930 x 580 mm |
| Max feed size | 480 mm |
| CSS Range | 60-175 mm |
| Capacity(by hour) | 80-450 tph |
| Motor power | 90 KW |
*Note: The processing capacity of the CJ96 jaw crusher may vary with different materials and feeding sizes.
Two 2500-3000tph production lines enter into operation at the same time. In order to ensure both the quality and capacity we configure two sets of PCZ2125 heavy hammer impact crusher for primary crushing 4 sets of shaping hammer crusher a
The above pictures show production site of hard rock crusher plant. Unlike traditional crushing plant it adopts only one set of hard rock crusher to complete the crushing process which greatly reduces the equipment investment and increase
Xinxiang Dingli is a professional mining equipment manufacturer engaged in production of crushing and screening equipment and configuration of the gravel production lines with various capacities.
Technical Specifications:
Model: CJ96
Max. Feeding Size: 930×580 mm
Range of Discharging Port: 60-175 mm
Handling Capacity: 80-450 TPH
Power: 90 KW
The CJ96 jaw crusher is a state-of-the-art model that excels in performance and efficiency. Unlike traditional jaw crushers, the CJ96 has been improved in motion parameters, structural design, and adjustment methods.
Robust Design: Side plates, front wall, and rear beams are connected via cylindrical pins and bolted together, overcoming stress concentration typical of welded frames.
Enhanced Motion Parameters: Material is crushed efficiently in the upper part of the chamber with a larger stroke and higher crushing ratio in the lower part.
Compact and Stable: Compact design takes up less space, and the machine operates stably, ideal for fixed and mobile crushing plants.
Ease of Maintenance: Detachable structure simplifies transportation and installation, especially useful for underground setups.
Longevity: Extended bearing life and standardized jaw and frame bearings reduce spare parts inventory.
Suitable for crushing materials like river pebbles, granite, basalt, iron ore, limestone, quartz, diabase, construction waste, iron ore, and gold.
