Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw Crusher
| model | CPE-400 x 600 |
| Feed opening | 400 x 600 mm |
| Max feed size | 340 mm |
| CSS Range | 40 - 100 mm |
| Capacity(by hour) | 16 - 64 t/h |
| Motor power | 30 kW |
| Weight | 6500 Kg |
| Rotation speed of eccentric shaft | 275 r/min |
*Note: The processing capacity of the CPE-400 x 600 jaw crusher may vary with different materials and feeding sizes.
Nominal capacity300 - 800 t/h
Max. feed size1020 mm
Motor power180 kW
Live Chat
Nominal capacity5 - 21 t/h
Max. feed size210 mm
Motor power15 kW
Live Chat
Nominal capacity15 - 70 tph
Max. feed size350 mm
Motor power37 kW
Live Chat
The particle size of discharge can be adjusted according to the customer requirements. This production line has relatively large capacity.
Its seen from the pics that with large feed opening the hammer crusher can hold a large quantity of material for once. The protective device can prevent the materials from spillover which improves the capacity of entire production line.
It is seen this production line adopts centralized construction by using the dry sand making equipment of Zhongyu Dingli. In the sign board on the production site it clearly indicates the components of the equipment and operation process.

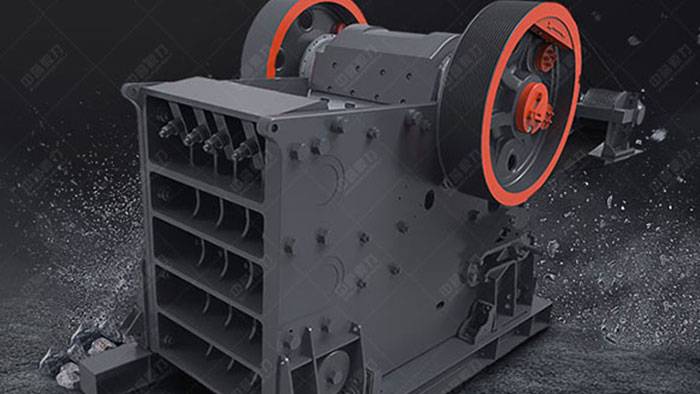

The CPE-400 x 600 Jaw Crusher is a reliable and high-performance model in the CPE Series Smart Jaw Crushers, designed for primary crushing in medium-sized operations. This crusher can handle feed sizes up to 340 mm and is suitable for processing various hardnesses of stone and rock with compressive strength not exceeding 320 MPa.
The CPE-400 x 600 Jaw Crusher has a production capacity of 16 to 64 tons per hour and is equipped with a 30 kW motor, ensuring efficient and stable operation. Its deep-cavity design maximizes the processing volume, and the frame is constructed using robust materials, providing higher strength and durability.
In addition, the CPE-400 x 600 Jaw Crusher features several intelligent functions, such as real-time monitoring of fixed and movable jaw plate thickness, automatic detection and adjustment of discharge opening size, and intelligent control of feed rate. These features enhance production efficiency and extend the service life of the equipment.
For maintenance, the rear of the frame is equipped with a hydraulic cylinder for easy inspection and hydraulic adjustment of the discharge opening, ensuring the equipment remains in optimal working condition. The crusher weighs 6500 kg, making it a robust yet manageable solution for medium-sized operations.
Overall, the CPE-400 x 600 Jaw Crusher stands out for its efficient energy use, intelligent control, and reliable performance, making it an ideal choice for primary crushing in medium-sized operations.
