Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw crusher
| model | CSZ120 |
| Feed opening | 1200 x 870 mm |
| CSS Range | 70 - 200 mm |
| Capacity(by hour) | 175 - 540 tph |
| Motor power | 160 kW |
| Weight | 29,300 kg |
| Rotation speed of eccentric shaft | 230 rpm |
*Note: The processing capacity of the CSZ120 jaw crusher may vary with different materials and feeding sizes.
Constructed according to national standard the whole production linemakes full use of local rich mining resource. The process adopts transfer silo layout and suitable belt conveyor system. Such production model can be widely promoted acros
Equipment configuration: PCZ1620 heavy hammer crusher ZG2028 vibrating feeder 3YKZ2070 vibrating screen*2 sets. Performance feature: low investment quick interest gain high automation.
The above picture shows installation and production site of Shiyu Concrete Company in Sichuan. This stone crushing project is independently built by Zhongyu Dingli. The finished sand has full shape. Without dust pollution the production en

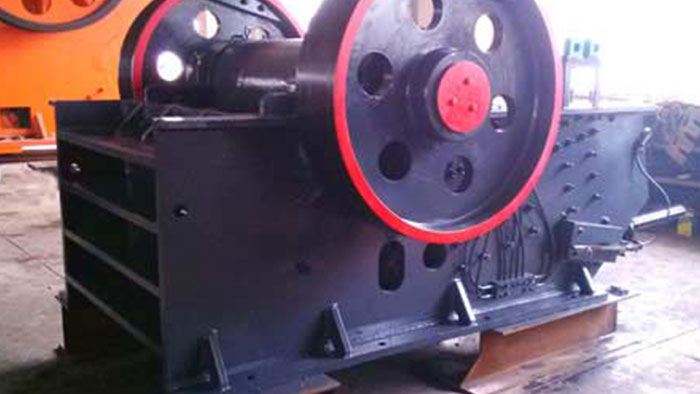

For operations that demand high-capacity crushing, the CSZ120 Jaw Crusher is the perfect solution. Designed for use in large-scale projects such as mining, coal extraction, and construction waste recycling, the CSZ120 delivers unparalleled performance. Its modular, non-welded frame design ensures long-lasting durability and easy maintenance, making it a valuable asset for any industrial setting.
Powered by a mighty 160 kW motor rotating at 230 rpm, the CSZ120 is a powerhouse when it comes to crushing. Weighing in at 26000 kg and capable of handling a working load of 29300 kg, this machine is built to take on the heaviest loads. The feed opening of 1200 x 870 mm is spacious enough to accommodate large pieces of material, ensuring high throughput. Output capacities range from 175 to 540 tons per hour, depending on the discharge setting.
The CSZ120 is designed to be user-friendly, with features that make it easy to operate and maintain. The modular design allows for easy access to internal components, facilitating routine checks and repairs. The adjustable discharge opening provides flexibility, enabling operators to optimize the machine for different types of material and desired output sizes.
