Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw crusher
| model | GFP400 x 600 |
| Feed opening | 400 x 600 mm |
| Max feed size | 350 mm |
| CSS Range | 25 - 80 mm |
| Capacity(by hour) | 25 - 80 tph |
| Motor power | 55 kW |
*Note: The processing capacity of the GFP400 x 600 jaw crusher may vary with different materials and feeding sizes.
Nominal capacity192 – 307 Mtph
Max. feed size
Motor power
Live Chat
Nominal capacity520 - 1100 tph
Max. feed size1200 mm
Motor power280 KW
Live Chat
This is a crushing production line established by cement industry that can crush not only limestone but clay and gypsum with high efficiency full crushing and lower wear-resistance.
The above picture shows installation and production site of Shiyu Concrete Company in Sichuan. This stone crushing project is independently built by Zhongyu Dingli. The finished sand has full shape. Without dust pollution the production en
Four stone crusher plants take initiative to build a large limestone crushing line with the hourly capacity of 4000 ton the scale of which is rare both at home and aborad.

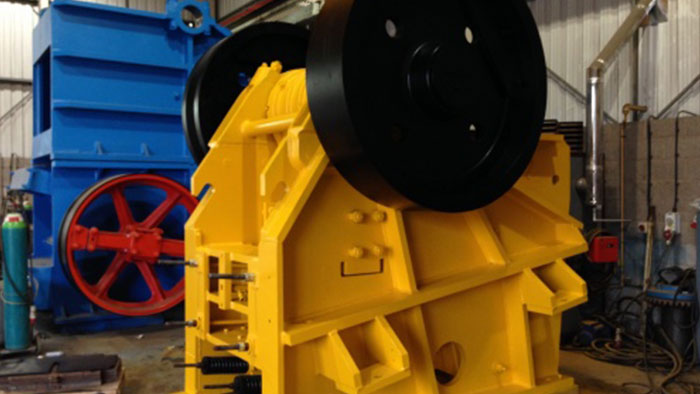

The GFP400 x 600 deep chamber jaw crusher is a mid-sized crushing unit that is ideal for secondary crushing tasks in various industries. It is often used alongside PF jaw crushers in stone and sand production lines but can also function as a primary crusher. Suitable for materials such as limestone, shale, basalt, river pebbles, quartzite, magnetite, basalt, steel slag, and iron ore, this machine provides excellent performance in tough applications.
Featuring a maximum feed size of ≤350mm and a discharge setting range of 25 to 80mm, the GFP400 x 600 delivers a processing capacity of 25 to 80 tons per hour. With a crushing ratio of around 15 and toggle plate oscillations at 330 times per minute, this machine is driven by a powerful 55kW motor, ensuring high productivity and efficiency.
