Home>Specifications and models>jaw crushers
Request a quote

Product data

modelJ55
Feed opening1100 x 1400 mm
Max feed size900 mm
CSS Range130 - 250 mm
Capacity(by hour)340 - 950 tph
Motor power200 kW
Weight54,600 kg
Rotation speed of eccentric shaft220 rpm

*Note: The processing capacity of the J55 jaw crusher may vary with different materials and feeding sizes.

Request a quoteMobiles tracked brochure

Our range jaw crushers

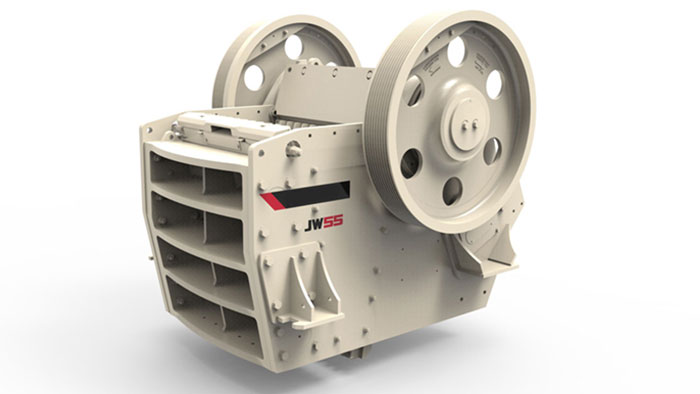

JW55 jaw crusher

JW55 jaw crusherJW55

Nominal capacity255-760 tph

Max. feed size

Motor power200 hp

Live Chat

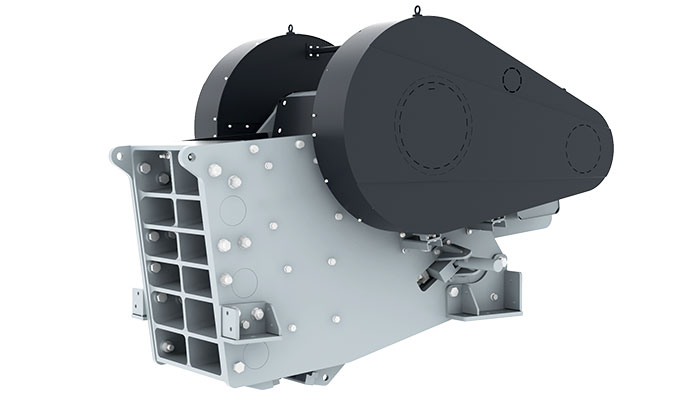

J45 jaw crusher

J45 jaw crusherJ45

Nominal capacity180 - 620 tph

Max. feed size650 mm

Motor power110 kW

Live Chat
J55 jaw crusher

J55 jaw crusherJ55

Nominal capacity340 - 950 tph

Max. feed size900 mm

Motor power200 kW

Live Chat

Case stories

1000TPH Stone Production Line of Shangtong CO. Ltd.

After many times site inspection material hardness and compressive strength testing and overall recognition of demanding finished material size and output Xinxiang Zhongyu Dingli lastly designed this 1000t/h fine aggregates line.

5000TPD Gravel and Aggregate Production Line in Yichun Jian

Only configured with a heavy hammer crusher and four vibrating screens, this production line can produce six types of finished materials. Moreover the final products have sound grain shape

800TPH Stone Production Line in Guyuan Ningxia

At the production site it is seen that several trucks are waiting to be loaded with material for transporting. The site sale situation is very hot. These customers are attracted by the high quality and large reserve of fine stone.

Additional product information

J55 Jaw Crusher: Ideal for Heavy-Duty Applications

Installation Guide:

  • Site Selection: Choose a firm foundation to ensure stable installation of the equipment.
  • Space Planning: Provide sufficient space around the equipment for maintenance and operation.
  • Electrical Connections: Follow the manufacturer’s guidelines for proper electrical connections and ensure circuits meet safety standards.
  • Commissioning Steps: Conduct a comprehensive commissioning process before starting the equipment to verify all systems are functioning correctly.
  • Operator Training: Provide necessary training to operators to familiarize them with all functions of the equipment.

Technical Specifications:

  • Feed Opening: 1100 x 1400 mm
  • Maximum Feed Size: â‰¤900 mm
  • Discharge Opening Range: 130-250 mm
  • Speed: 220 rpm
  • Capacity: 340-950 t/h
  • Motor Power: 200 kW
  • Machine Weight: 54,600 kg
