Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw crusher
| model | JC180 x 1300 |
| Feed opening | 180 x 1300 mm |
| Max feed size | 150 mm |
| CSS Range | 10 - 30 mm |
| Capacity(by hour) | 12 - 35 tph |
| Motor power | 30 kW |
| Dimensions | 1320 x 2150 x 1175 mm |
*Note: The processing capacity of the JC180 x 1300 jaw crusher may vary with different materials and feeding sizes.
Work Process The large rocks are fed by the vibrating feeder into PCZ1512 heavy hammer crusher in a uniform manner. The crushed stones are then conveyed by the conveyor to 2YKZ2460 vibrating screen for classifying the stone materials in various sizes
Featured by low investment and fast recovery of cost this production line can produce cubic stone with sound compression resistance far beyond customer expectation so it is warmly welcomed by the old and new customers.
In aggregates production line hammer crusher works as primary crusher that can crush bulk limestone.

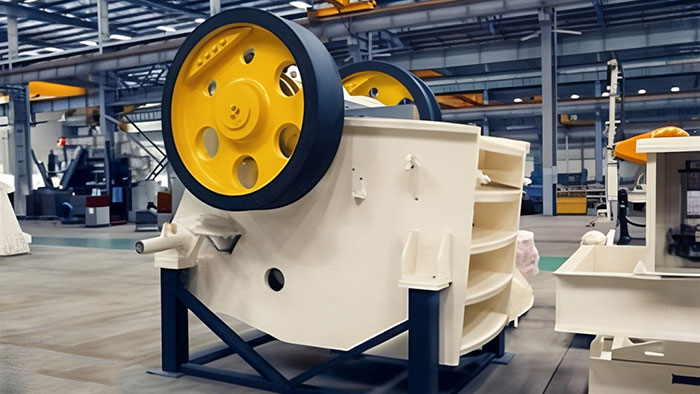

The JC180 x 1300 European-Type Jaw Crusher is designed for medium and fine crushing tasks in metallurgy, mining, chemical, cement, construction, refractory materials, and ceramic industries. This model is best suited for crushing medium-hard ores and rocks with a compressive strength not exceeding 280MPa. The maximum feed size for the JC180 x 1300 is 150mm, and it can produce outputs ranging from 10 to 30mm. The machine is capable of processing between 12 and 35 tons per hour, making it ideal for smaller scale operations.
Featuring world-class manufacturing techniques and premium materials, the JC180 x 1300 European-Type Jaw Crusher offers unparalleled durability. Its moving jaw assembly is built using high-quality cast steel components and driven by two large cast steel flywheels. The heavy-duty eccentric shaft is forged from billets, ensuring exceptional reliability.
