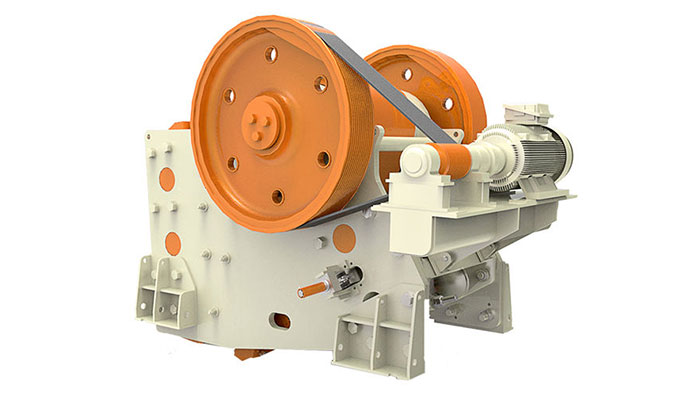

Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw crusher
| model | JC659 |
| Feed opening | 1200×1500 mm |
| Max feed size | 1000 mm |
| CSS Range | 150-300 mm |
| Capacity(by hour) | 470-1295 tph |
| Motor power | 200-250 KW |
*Note: The processing capacity of the JC659 jaw crusher may vary with different materials and feeding sizes.
The technician is conducting the commissioning of all the associated equipment which greatly reduces the possibility of failure in the future operation and improve follow-up production efficiency.
The pics show actual production site of the stone crusher plant in Changzhi Shanxi. By working extra hours every day from the start our staff ensures fast completion of the stone crushing line project.
As to equipment selection and layout it is a big advantage with the two production lines respectively equipped with the host PCZ1820 running side by side since when one line is under maintenance the other one can continue to operate.
Capacity(by hour)：470-1295 tph
Motor power：200-250 kW
| Crusher throughput capacity,scalped feed material | Crusher throughput capacity,Non-scalped feed material | |
|---|---|---|
| Dischaging Size (mm) | Capacity (t/h) | |
| 150 | 470-610 | 540-860 |
| 175 | 540-700 | 620-860 |
| 200 | 610-795 | 705-945 |
| 225 | 680-885 | 790-1030 |
| 250 | 750-975 | 875-1115 |
| 275 | 820-1055 | 960-1205 |
| 300 | 895-1140 | 1040-1295 |
