Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw crusher
| model | JCE860 x 1100 |
| Feed opening | 860 x 1100 mm |
| Max feed size | 720 mm |
| CSS Range | 100 - 225 mm |
| Capacity(by hour) | 200- 500 tph |
| Motor power | 132 KW |
| Dimensions | 3300 x 2320 x 3120 mm |
| Rotation speed of eccentric shaft | 240 |
*Note: The processing capacity of the JCE860 x 1100 jaw crusher may vary with different materials and feeding sizes.
Nominal capacity
Max. feed size630 mm
Motor power110 KW
Live Chat
Nominal capacity55 – 135 Mtph
Max. feed size280 mm
Motor power90 KW
Live Chat

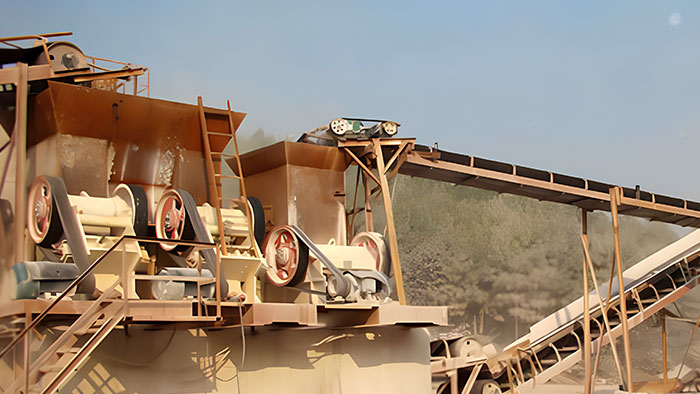

Featured by low investment and fast recovery of cost this production line can produce cubic stone with sound compression resistance far beyond customer expectation so it is warmly welcomed by the old and new customers.
From this picture PCZ1308 hammer crusher of Xinxiang Dingli as the secondary crushing machine can crush and shape stone into high quality finished material with higher value than other ordinary stone.
Through primary crusher the unqualified aggregates will be returned to the crusher for a repeated crushing so as to obtain the finished material with sound grain shape. This gravel production line will be reformed by adding bag filter.
The JCE860 x 1100 jaw crusher is designed for unmatched crushing power in large-scale projects, capable of processing materials up to 720mm in size through an 860×1100mm feed opening. The adjustable discharge gap ranges from 100 to 225mm, allowing for customizable output sizes. The eccentric shaft rotates at 240 rpm, achieving a throughput of 200-500 tons per hour. Equipped with a Y315L1-6 motor delivering 132 kW of power at 985 rpm, the JCE860 x 1100 is a high-performance machine with dimensions of 3300 x 2320 x 3120mm.
Efficiency and Output Control:The JCE860 x 1100 is designed to maximize efficiency and control over the output material. The machine's discharge opening adjusting device allows operators to easily adjust the size of the discharge opening, ensuring precise control over the particle size of the output material. This feature is crucial for applications requiring consistent product quality. Additionally, the machine's robust design ensures minimal downtime and maximum throughput, making it a preferred choice for large-scale industrial projects.
