Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderJaw crusher
| model | JYCX160 |
| Feed opening | 1200 x 1600 mm |
| Max feed size | 1020 mm |
| CSS Range | 150 - 300 mm |
| Capacity(by hour) | 410 - 1150 tph |
| Motor power | 250 KW |
| Dimensions | 5700 x 3650 x 3550 mm |
*Note: The processing capacity of the JYCX160 jaw crusher may vary with different materials and feeding sizes.
Its seen the crushing equipment is neatly arranged at the customers production site and the dust proof facility is installed in all the conveying equipment. The dust prevention measure is especially required in the junction of equipment.
Equipment configuration: PCZ1615 heavy hammer crusher ZG1538 vibrating feeder 3YKZ1670 vibrating screen. Performance feature: as one of the major market of Xinxiang Dingli Jiangxi spreads over our customers production sites.
Its seen from the pics that with large feed opening the hammer crusher can hold a large quantity of material for once. The protective device can prevent the materials from spillover which improves the capacity of entire production line.

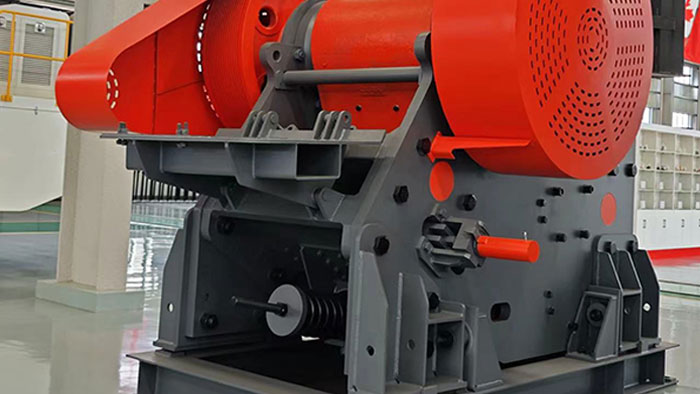

The JYCX160 European Type Jaw Crusher is a superlative primary crusher designed for applications requiring exceptional crushing power and reliability. With a feed opening of 1200 x 1600 mm, this model can handle materials up to 1020 mm in size. The crusher is powered by a 250 kW motor and weighs 5700 kg, making it ideal for high-volume crushing operations.
Solid Frame Structure: Built from premium-grade steel plates, the frame is engineered to withstand rigorous use and maintain its shape over time.
Highly Efficient Jaw Head: The jaw head is fabricated using cutting-edge casting technology, providing superior strength and durability.
High-Quality Main Shaft: The main shaft is forged from high-grade steel and undergoes stringent heat treatment to achieve outstanding mechanical properties.
Effective Crushing Mechanism: The design includes a large centrifugal force and inclined toggle plate, enhancing the effectiveness of the crushing action.
Adjustable Discharge Options: The adjustable discharge range offers flexibility in producing different particle sizes, accommodating various industrial requirements.
Streamlined Maintenance: The hydraulic adjustment feature ensures simple and rapid adjustments to the discharge opening, optimizing operational efficiency.
