Product data

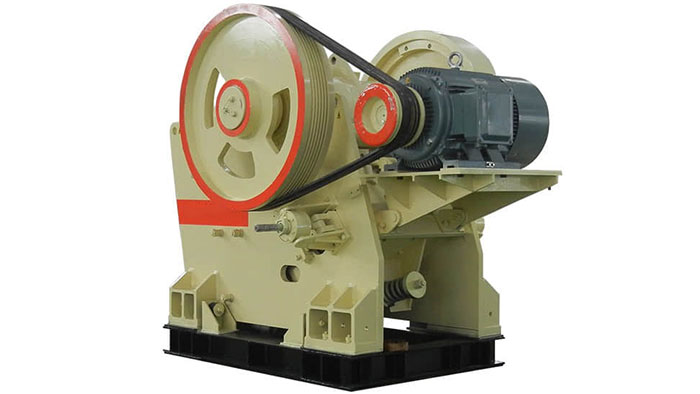

modelPE-500 x 750
Feed opening500 x 750 mm
Max feed size425 mm
CSS Range50 - 100 mm
Capacity(by hour)48 - 96 tph
Motor power55 kW
Dimensions2030 x 1966 x 1920 mm

*Note: The processing capacity of the PE-500 x 750 jaw crusher may vary with different materials and feeding sizes.

Request a quoteMobiles tracked brochure

Our range jaw crushers

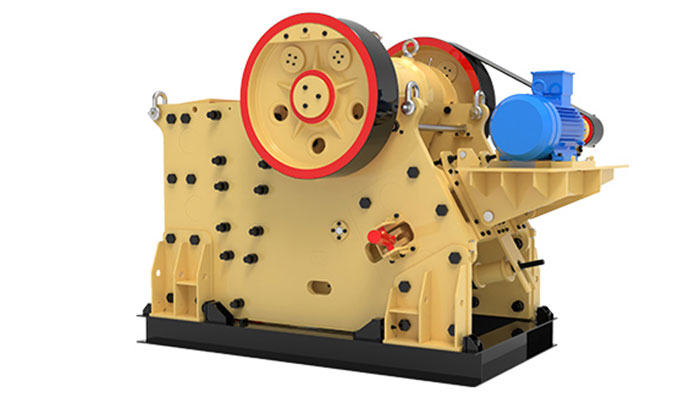

PE-1500X1800 jaw crusher

PE-1500X1800 jaw crusherPE-1500 x 1800

Nominal capacity1440- 1760 tph

Max. feed size1200 mm

Motor power630 kW

Live Chat
PE-1000X1200 jaw crusher

PE-1000X1200 jaw crusherPE-1000 x 1200

Nominal capacity320 - 765 tph

Max. feed size800 mm

Motor power180 kW

Live Chat
PE-870X1060 jaw crusher

PE-870X1060 jaw crusherPE-870 x 1060

Nominal capacity160 - 368 tph

Max. feed size700 mm

Motor power132 kW

Live Chat

Case stories

300TPH Stone Production Line in Lianhua Jiangxi

Equipment configuration: PCZ1512 heavy hammer crusher ZGC1250 vibrating feeder YK1860 vibrating screen*2 sets

1000t/h limestone crushing processing system

This 1,000 tons of aggregate production line was put into operation in September 2018, using DLPCZ1820 heavy hammer crusher, DLPC1220 plastic hammer crusher, DL3YKZ3070 vibrating screen and other sets of mine production equipment, the introduction of a complete set of mine intelligent management system.

Manufactured Sand Production Line in Henan

In the production site of customer it can be seen that the raw materials of sand making are mainly the stones with large grain size and through being crushed these stones are finally used for sand making.

Additional product information

PE-500X750 Jaw Crusher: Compact Power for Efficient Crushing

Technical Details

  • Feeder Opening: 500x750 mm
  • Max Feed Size: 425 mm
  • Discharge Opening Range: 50～100 mm
  • Capacity: 48～96 t/h
  • Motor: Y280M-6, 55 kW

Key Features

  • Compact yet powerful, the PE-500X750 is designed to handle initial stages of crushing, providing a solid foundation for downstream processes.
  • Versatile application, suitable for primary crushing of various materials such as river gravel, limestone, dolomite, granite, rhyolite, diabase, basalt, and black metallic ores.
  • User-friendly design with easy maintenance and reliable operation.

ApplicationsPrimarily used in the preliminary crushing stage in industries like highway construction, railways, airports, mining, building materials, metallurgy, and chemical engineering.
