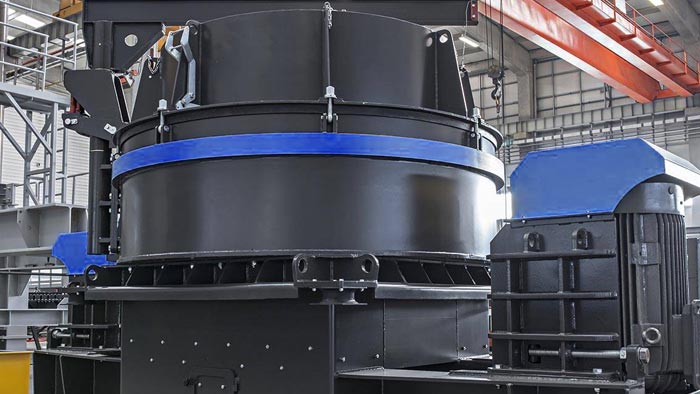

Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderVertical Shaft Impact Crusher
Enclosed rotor and rock shelf (ROR)——ROCK ON ROCK
| Model | MVI90G(ROR SD) | MVI90G(ROR DD) | ||
| Drive | Single Drive | Dual Drive | ||
| Maximum Feed Size | 50 mm | 2 inch | 50 mm | 2 inch |
| Capacity | 200 mtph | 220 stph | 300 mtph | 300 stph |
| Power | 200-250 kW | 275-340 HP | 2×110-200 kW | 2×150-275 kW |
| Speed | 1400-1800 rpm | |||
| Weight | 8600 kg | 18960 lbs | 9400 kg | 20723 lbs |
Enclosed rotor and anvil ring (ROS)——ROCK ON STEEL
| Model | MVI90G(ROS SD) | MVI90G(ROS DD) | ||
| Drive | Single Drive | Dual Drive | ||
| Maximum Feed Size | 50 mm | 2 inch | 50 mm | 2 inch |
| Capacity | 200 mtph | 220 stph | 300 mtph | 330 stph |
| Power | 200-250 kW | 275-340 HP | 2×110-200 kW | 2×150-275 kW |
| Speed | 1400-1800 rpm | |||
| Weight | 10990 kg | 24228 lbs | 11800 kg | 26014 lbs |
*Note: The processing capacity of the MVI90G cone crusher may vary with different materials and feeding sizes.
