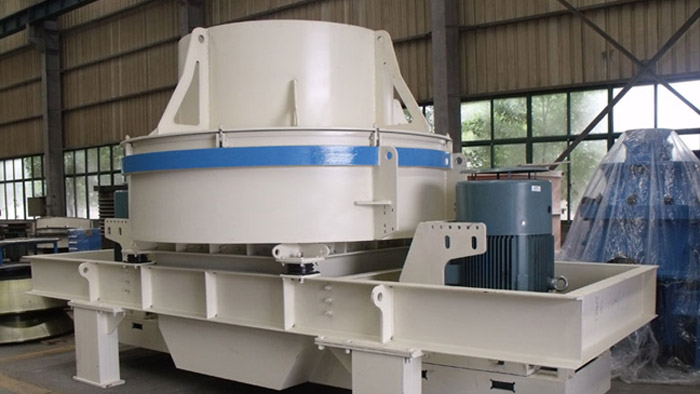

Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderImpact sand maker
| Model | VCU726L | VCU726M | VCU726H |
| Rotation Speed of Impeller (r/min) | 1881-2499 | ||
| Max Feed Size (mm) | 55 | ||
| Throughput (t/h) (Full feeding center / center plus waterfall feeding) | 86-143 | 98-176 | 132-210 |
| 108-211 | 124-253 | 143-300 | |
| Motor Power (kw) | 110 | 132 | 160 |
| Overall Dimensions (mm) | 3155x1941x24 | ||
| Weight(motor not included) (kg) | ≤6950 | ||
*Note: The processing capacity of the VCU726 cone crusher may vary with different materials and feeding sizes.
