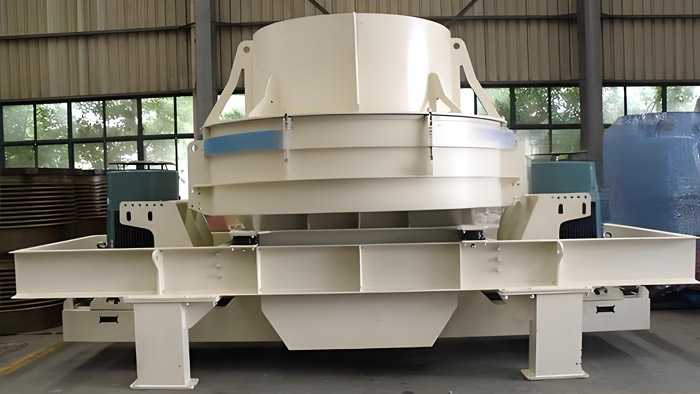

Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderImpact sand maker
| Model | VCU730L | VCU730M | VCU730H |
| Rotation Speed of Impeller (r/min) | 1630-2166 | ||
| Max Feed Size (mm) | 65 | ||
| Throughput (t/h) (Full feeding center / center plus waterfall feeding) | 150-212 | 186-280 | 220-340 |
| 162-310 | 203-408 | 245-480 | |
| Motor Power (kw) | 180 | 220 | 264 |
| Overall Dimensions (mm) | 4400x2189x2501 | ||
| Weight(motor not included) (kg) | ≤9910 | ||
*Note: The processing capacity of the VCU730 cone crusher may vary with different materials and feeding sizes.
