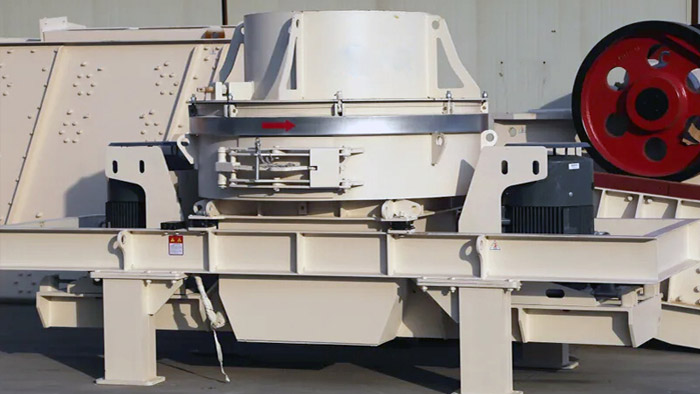

Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderImpact sand maker
| Model | VCU733L | VCU733M | VCU733H |
| Rotation Speed of Impeller (r/min) | 1455-1934 | ||
| Max Feed Size (mm) | 80 | ||
| Throughput (t/h) (Full feeding center / center plus waterfall feeding) | 230-338 | 268-398 | 327-485 |
| 255-497 | 296-562 | 373-696 | |
| Motor Power (kw) | 264 | 320 | 400 |
| Overall Dimensions (mm) | 4800x2360x2891 | ||
| Weight(motor not included) (kg) | ≤13820 | ||
*Note: The processing capacity of the VCU733 cone crusher may vary with different materials and feeding sizes.
