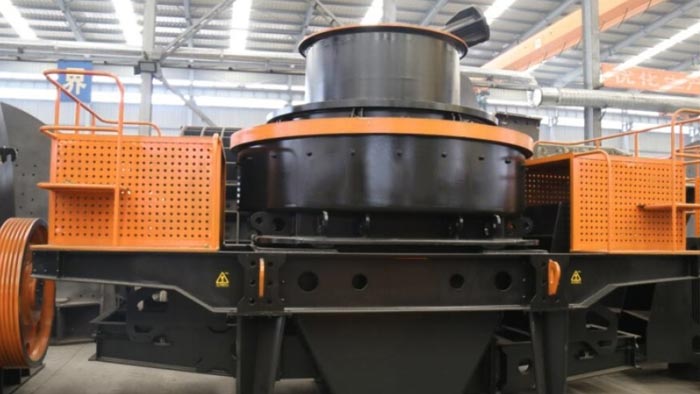

VSI1150 Sand Crusher-VSI Series Vertical Shaft Impact Crusher_Dingli crusher

Sand Aggregate IndustryComprehensive Service Provider


HOME
PRODUCTS
ABOUT
CUSTOMERS
CONTACT

Home>Specifications and models>Sand making machine

Technical Specifications

Model	VSI1150
Capacity no center feeding	413-442tph	455-487stph
Capacity center feeding	344-368tph	379-405stph
The best feed size soft	55mm	2.17inch
The best feed size hard	45mm	1.77inch
Rotating speed	1000-1300r/min
Dual motor power	500kW	680HP
Dimensions	5500×2750×3950mm	216.54×108.27×155.51inch
Weight	23t	50,706 lbs

*Note: The processing capacity of the VSI1150 cone crusher may vary with different materials and feeding sizes.

Request a quote Mobiles tracked brochure

Related Model

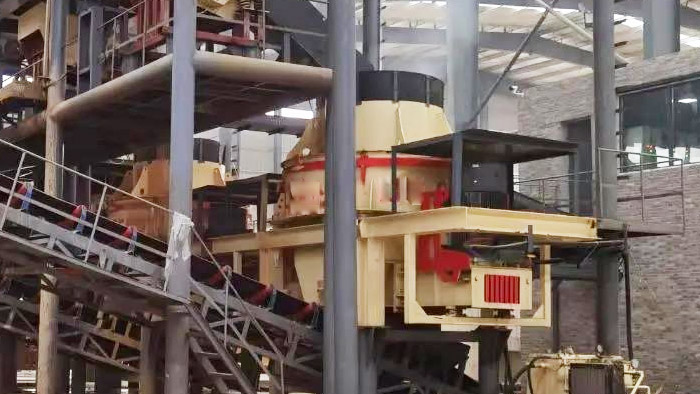

LM8000 Vertical impact crusher

LM8000 Vertical impact crusherLM8000

Nominal capacity

Max. feed size

Motor power

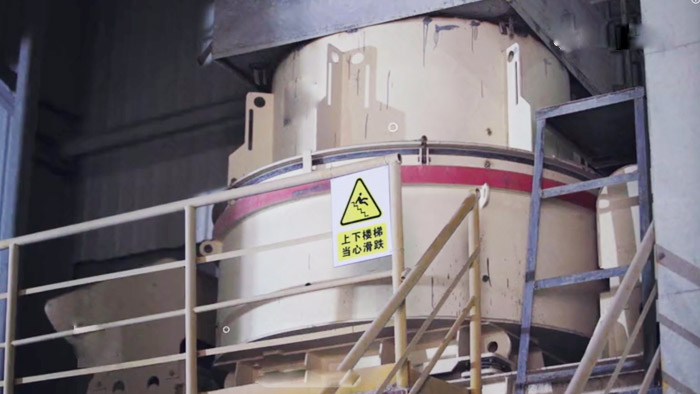

VS1500A Vertical shaft impact crusher

VS1500A Vertical shaft impact crusherVS1500A

Nominal capacity

Max. feed size

Motor power

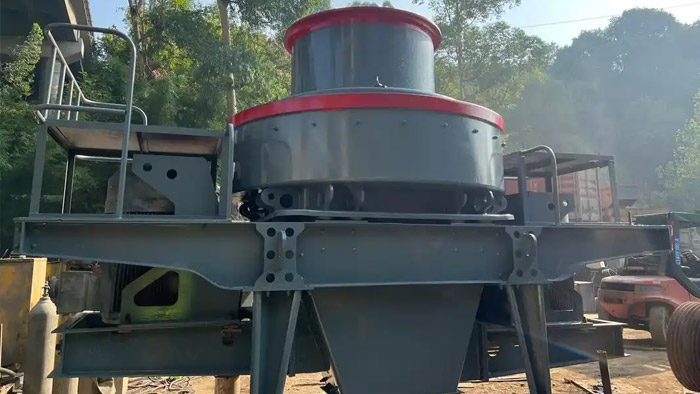

L710 Impact sand-making equipment
