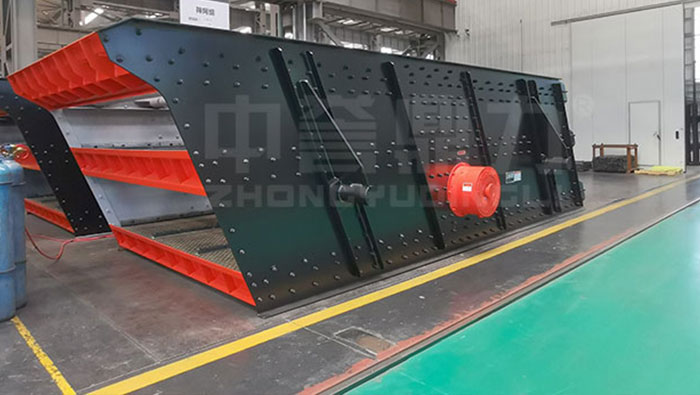

Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderVibrating Screens
| Model | Screen specifications (mm) | Screen mesh layers | Angle (°) | Mesh size (mm) | Feeding size (mm) | Vibration frequency (r/min) | Amplitude (mm) | Capacity (t/h) | Motor power (kw) | External dimensions (mm) |
| 2Y1860 | 1800 × 6000 | 2 | 20 | 5 - 80 | 400 | 970 | 8 | 50 - 300 | 18.5 | 6260 × 2950 × 3480 |
| 3Y1860 | 3 | 50 - 350 | 22 | 6260 × 2950 × 3960 |
*Note: The processing capacity of the Y1860 Vibrating Screens may vary with different materials and feeding sizes.
For crushing iron ore, DLHGC horizontal rotary crusher is selected, with a discharge requirement of less than 200mm for secondary crusher processing. Our company's horizontal rotary crusher has a feed height of about 50% to 60% compared to traditional selective crushing, which can save 60% to 70% of infrastructure construction costs.
With fully closed structure the whole stone production line is free from powder pollution. The reasonable configuration of belt conveyor facilitates smooth production of the production line.
This 1,000 tons of aggregate production line was put into operation in September 2018, using DLPCZ1820 heavy hammer crusher, DLPC1220 plastic hammer crusher, DL3YKZ3070 vibrating screen and other sets of mine production equipment, the introduction of a complete set of mine intelligent management system.
