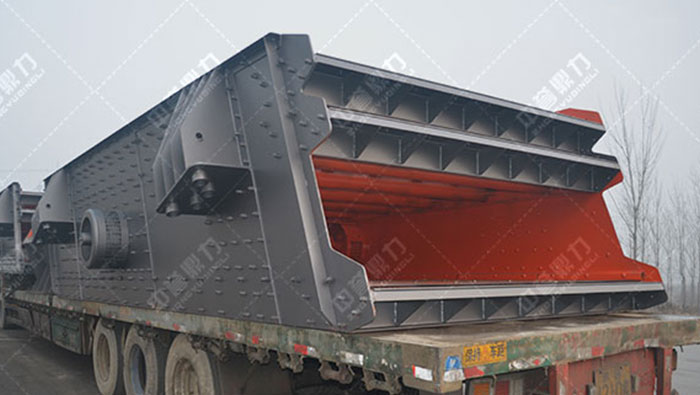

Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderVibrating Screens
| Model | Screen specifications (mm) | Screen mesh layers | Angle (°) | Mesh size (mm) | Feeding size (mm) | Vibration frequency (r/min) | Amplitude (mm) | Capacity (t/h) | Motor power (kw) | External dimensions (mm) |
| 2Y2160 | 2100 × 6000 | 2 | 20 | 5 - 150 | 400 | 730 | 6 - 8 | 100 - 500 | 22 | 6270 × 3410 × 3670 |
| 3Y2160 | 3 | 30 | 6270 × 3470 × 4100 |
*Note: The processing capacity of the Y2160 Vibrating Screens may vary with different materials and feeding sizes.
2500 Ton/Day Gravel Aggregate Production Process Configuration List Equipment Model Unit(s) Vibrating Feeder ZG1038 1 Heavy Hammer Crusher PCZ1510 1 Hammer Crusher XPC0808 1 Vibrating Screen 2YKQ2060 2 The bulk limestone is evenly fed into
Two 2500-3000tph production lines enter into operation at the same time. In order to ensure both the quality and capacity we configure two sets of PCZ2125 heavy hammer impact crusher for primary crushing 4 sets of shaping hammer crusher a
The owner of this production line has over 20 years of experience in the construction of stone plan. By compared with many others it selects Dingli’s equipment since the aggregates produced have sound grain shape better quality.
