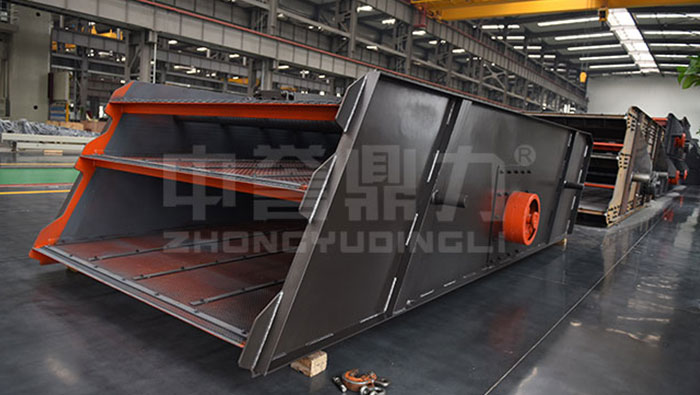

Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderVibrating Screens
| Model | Screen specifications (mm) | Screen mesh layers | Angle (°) | Mesh size (mm) | Feeding size (mm) | Vibration frequency (r/min) | Amplitude (mm) | Capacity (t/h) | Motor power (kw) | External dimensions (mm) |
| 2Y2460 | 2400 × 6000 | 2 | 20 | 5 - 150 | 400 | 730 | 6 - 8 | 150 - 700 | 37 | 6270 × 3770 × 3610 |
| 3Y2460 | 3 | 6270 × 3790 × 4100 |
*Note: The processing capacity of the Y2460 Vibrating Screens may vary with different materials and feeding sizes.
The main function of this production line is crushing limestone and dolomite.
The main function of this production line is crushing limestone and dolomite.
Since there is a large quantity of fine-grained particle in the material the pre-screening shall be conducted before secondary and fine crushing. If the particle size is small the closed screening should be adopted.
