Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderVibrating Screens

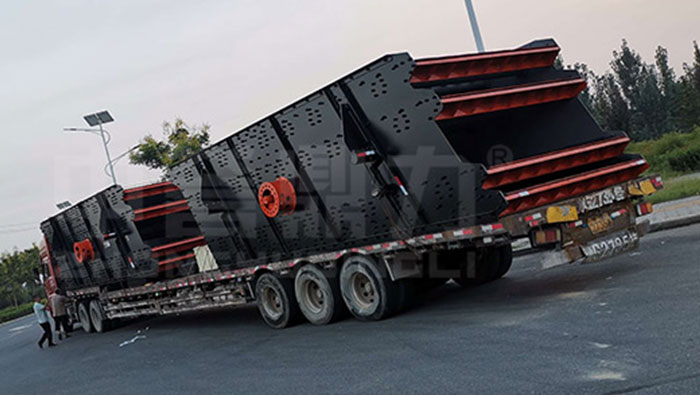

| Model | Screen specifications (mm) | Screen mesh layers | Angle (°) | Speed (r/min) | Vibration frequency (r/min) | Amplitude (mm) | Feeding size (mm) | Capacity (t/h) | Motor power (kw) | External dimensions (mm) | Weight (t) |
| 2YK-1854 | 1800 × 5400 | 2 | 20 | 970 | 970 | 8 | 400 | 63 - 586 | 22 | 5200 × 3400 × 3911 | 7.6 |
| 3YK-1854 | 3 | 15 | 51 - 496 | 6200 × 3326 × 3393 | 8.7 | ||||||
| 4YK-1854 | 4 | 20 | 730 | 730 | 32 - 310 | 30 | 5447 × 3417 × 4266 | 10.5 |
*Note: The processing capacity of the YK1854 Vibrating Screens may vary with different materials and feeding sizes.
Machine configuration: ZG1550 vibrating feeder + PCZ1615 heavy hammer crusher + 3YKQ2470 vibrating screen*2 + XPC1216 hammer crusher + 4YKQ2670 vibrating screen*2 + XS3016 bucket wheel sand washer*2
Two 2500-3000tph production lines enter into operation at the same time. In order to ensure both the quality and capacity we configure two sets of PCZ2125 heavy hammer impact crusher for primary crushing 4 sets of shaping hammer crusher a
The above pictures show production site of hard rock crusher plant. Unlike traditional crushing plant it adopts only one set of hard rock crusher to complete the crushing process which greatly reduces the equipment investment and increase
