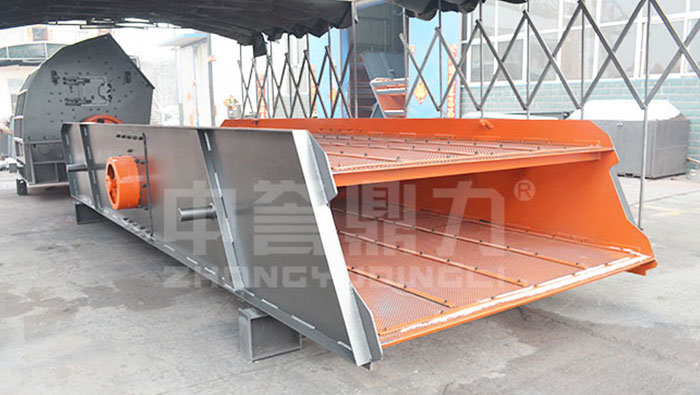

Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderVibrating Screens
| Model | Screen specifications (mm) | Screen mesh layers | Mesh size (mm) | Feeding size (mm) | Capacity (t/h) | Motor power (kw) | Weight (kg) | Vibration frequency (hz) | Amplitude (mm) | Angle (°) | External dimensions (mm) |
| ZSG1443 | 4300 × 1400 | 1 | 4 - 50 | 200 | 10 - 150 | 2 × 5.5 | 4100 | 16 | 6 - 8 | 15 | 4500 × 3040 × 2500 |
| 2ZSG1443 | 2 | 4900 | 4500 × 3040 × 2700 | ||||||||
| 3ZSG1443 | 3 | 5870 | 4500 × 3040 × 2820 |
*Note: The processing capacity of the ZSG1443 Vibrating Screens may vary with different materials and feeding sizes.
Completed in : 2018-01 Designed by : Xinxiang Dingli Mining Equipment Co. Ltd. Background : Such 3000tph aggregate production line is built through integration of previous six small aggregate production lines. Design feature : The belt conveyor syst
Production line configuration: DLPCZ1620 heavy hammer crusher DLZG2050 vibrating feeder DL2YKZ2070 vibrating screen*2 sets DL3YKZ3070 vibrating screen*2 sets DL2YKZ3070 vibrating screen DLDMCA deduster*5 sets
Leiming built a new-type gravel production line on the basis of prior stone production line for eco-friendly production.
