| Parameter Category | Specification Value | |
|---|---|---|
| model | DLDS420 | |
| Cavity type | S1 | S2 |
| Feeding port size (mm) | 250 | 200 |
| Max feed size (mm) | 200 | 160 |
| Minimum discharge port size (mm) | 22 | 19 |
| Capacity (tph) | 85 - 170 | 70 - 130 |
| Power (kw) | 90 | |

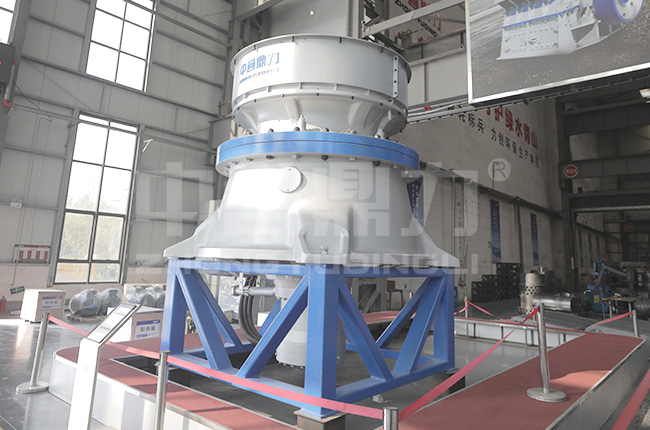

The equipment suitable for crushing and processing 150 tons per hour is the S1 chamber type of DLDS420 cone crusher. This equipment can crush coarse crushed stone materials with a feed size of less than 200 millimeters into stone materials no larger than 22 millimeters, with a production capacity of 85-170 tons per hour. This equipment is suitable for medium crushing processing, and the obtained material has a larger particle size. It can be further equipped with a fine crushing sand making machine for processing and production.
If fine crushing processing is required, the DLDH430 horizontal bar cone crusher H2 chamber type equipment can be used. The equipment has a feed particle size of less than 90 millimeters and a discharge particle size of less than 10 millimeters, with a production capacity of 57-184 tons and a motor power of 160 kW. The equipment has a relatively high power consumption and a small feed size, which requires significant discharge specification limitations for coarse crushing equipment.
The above two types of equipment have their own advantages and disadvantages in crushing materials, and the specific equipment selection can be based on the actual situation.
This equipment is widely used in industries such as metal and non-metal mining, cement, sand and gravel, and metallurgy. It is suitable for medium and fine crushing of various ores and rocks with a Proctor hardness of less than 16, such as iron ore, non-ferrous metal ore, granite, basalt, quartzite, cobblestone, sandstone, limestone, etc.
