| Parameter Categorymodel | Specification Value |
|---|---|
| model | DLEV106 |
| Feed opening | 1060 x 700 mm |
| Max feed size | 600 mm |
| CSS Range | 90 - 200 mm |
| Capacity(by hour) | 200 - 300 tph |
| Motor power | 110 KW |

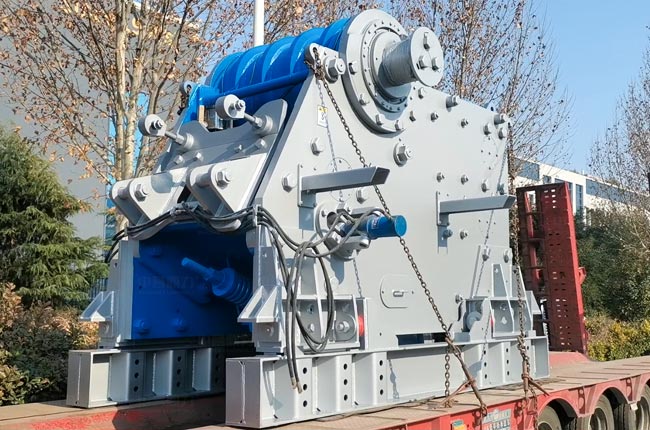

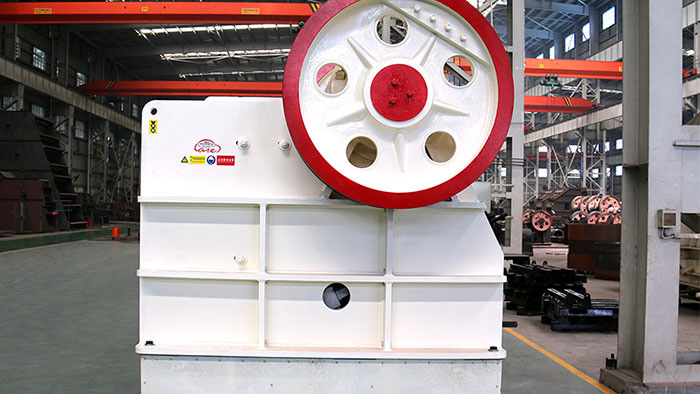

The DLEV106 Jaw Crusher is engineered for high-capacity primary crushing, capable of processing ore with a maximum feed size of up to 600mm. Its discharge opening is adjustable within a range of 90-200mm, offering flexibility for initial size reduction.
This crusher serves as the ideal primary stage in a complete processing circuit. It can be efficiently paired with a 1650 Spring Cone Crusher for secondary crushing, ensuring thorough material reduction.
For precise product classification, a recommended screening setup includes one 3YKR3060 double-deck and one 3YKR2460 triple-deck circular vibrating screen. This configuration effectively sorts the output into four specification grades: 0-5mm, 5-16mm, 16-25mm, and 25-31.5mm finished aggregates.
