CC1000

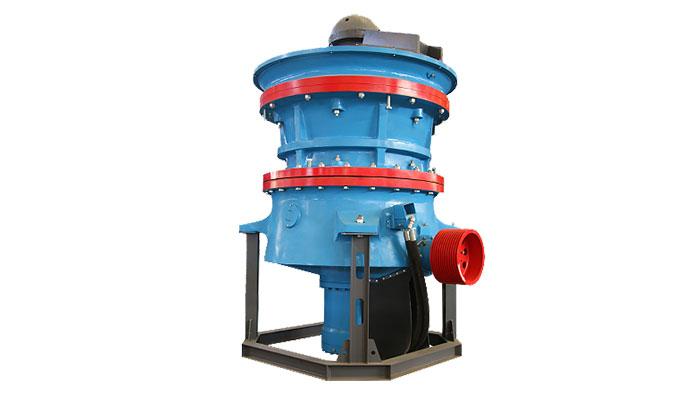

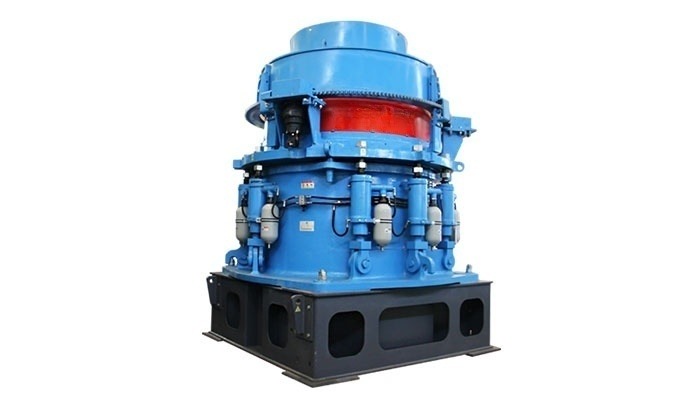

CC1000 Cone Crusher: Performance and Features

The CC1000 cone crusher is a highly capable and versatile piece of equipment in the field of crushing, designed to meet a wide range of industrial crushing requirements with its distinct features and performance capabilities.

I. Multiple Cavity Types and Their Feed Specifications

The CC1000 comes equipped with four different cavity types, namely EF, M, F, and another EF (with different characteristics based on the specific parameters). Each cavity type is tailored to handle specific maximum feed sizes. The EF cavity can accommodate a maximum feed size of 160mm, while the M cavity is designed for materials with a maximum size of 115mm. The F cavity is suitable for handling up to 80mm of feed size, and the other EF cavity can take in materials with a maximum of 50mm. This variety in cavity options allows the crusher to efficiently process different input materials, depending on the nature and size of the raw materials available at various stages of production.

II. Discharge Size Control

One of the key aspects of the CC1000 is its precise control over the discharge size. The minimum discharge size varies among the cavity types. In the EF cavity with a maximum feed size of 160mm, the minimum discharge size is 13mm. For the M cavity, it is 10mm, and in the F cavity, it can be as small as 8mm. The other EF cavity with a maximum feed size of 50mm has a minimum discharge size of 6mm. This enables operators to have fine-grained control over the final product size, which is crucial in industries such as construction, mining, and manufacturing, where specific particle sizes are essential for subsequent processing or end-use applications.

III. Motor Power and Crushing Capacity

The CC1000 is powered by a motor with a power range of 90 - 110kw, providing substantial power to drive the crushing process effectively. When it comes to the crushing capacity, it varies significantly depending on the cavity type and the closed side discharge opening size. For instance, in the EF cavity (with 160mm maximum feed size), when the closed side discharge opening is 13mm, the crushing capacity starts at 80t/h and increases as the opening size gets larger, reaching up to 235t/h at certain sizes. In the M cavity, with a 10mm minimum discharge size, the capacity starts at 65t/h at a specific opening and progresses accordingly. Similar variations in crushing capacity are observed for the F and the other EF cavities based on their respective discharge opening sizes. This wide range of crushing capacities makes the CC1000 adaptable to different production volumes and capable of fulfilling the diverse demands of various industrial operations.

In summary, the CC1000 cone crusher, with its multiple cavity types, precise discharge size control, and variable crushing capacities, plays a vital role in many industries by providing reliable and efficient crushing solutions for different material processing tasks.
