Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderCone Crusher
| Model | DLDH870 | ||
| Cavity Type | H1 (Fine) | H2 (Medium-Fine) | H3 (Ultra-Fine) |
| Feed Opening | 300 mm | 195 mm | 90 mm |
| Max Feed Size | ≤ 240 mm | ≤ 155 mm | ≤ 70 mm |
| CSS Range | ≤ 22 mm | ≤ 19 mm | ≤ 13 mm |
| Capacity (by hour) | 448 - 1512 t/h | 380 - 1373 t/h | 357 - 912 t/h |
| Motor Power | 560 kW | ||
*Note: The processing capacity of the DLDH870 cone crusher may vary with different materials and feeding sizes.
We not only improve its capacity but adopt a lot of environmental protection measures. Such as watering the mining area and road hardening roads adopting closed bag deduster in crushing station.
It is vital to select quality production equipment for the first investment of a small-scale stone plant. Dingli’s quality equipment can help the customer for initial investment enter into rapid production.
The 500t/h stone production line we equipped for Jiangxi Yichang is mainly with PCZ1615 heavy hammer crusher two-level efficient vibrating screens and relative pulse dedusters.

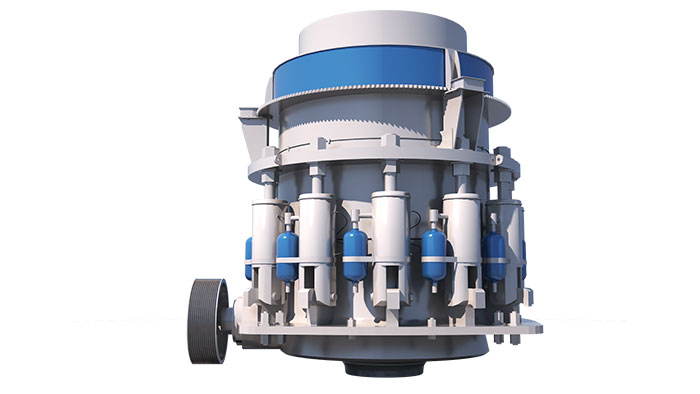

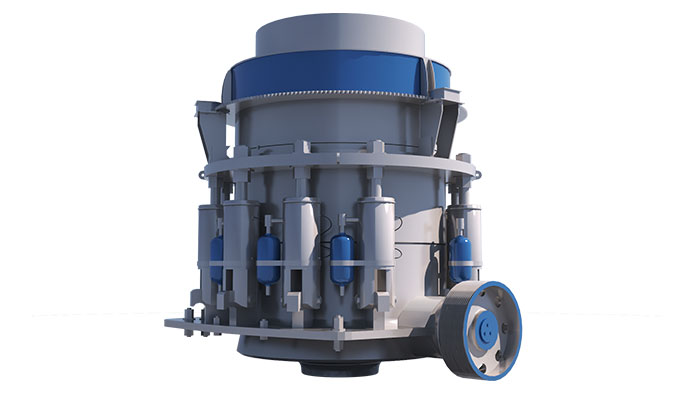

The DLDH870 Multi-Cylinder Hydraulic Cone Crusher is a high-efficiency machine designed for fine and medium-fine crushing applications. It is ideal for processing materials such as iron ore, basalt, and limestone. With a motor power of 560 kW, the DLDH870 can handle capacities ranging from 448 to 1512 tons per hour, making it a powerful choice for large-scale operations.
Advanced Crushing Technology: Ensures the production of high-quality, cubic-shaped products.
Efficient Transmission System: The spiral bevel gear transmission system provides smooth and quiet operation.
Overload Protection: Safeguards the hydraulic system, ensuring long-term reliability.
Dust Prevention Mechanism: The U-T dust seal system and positive pressure dust prevention device keep the lubrication system clean.
Intelligent Control System: Offers multiple operating modes and real-time monitoring, ensuring optimal performance and timely maintenance.
