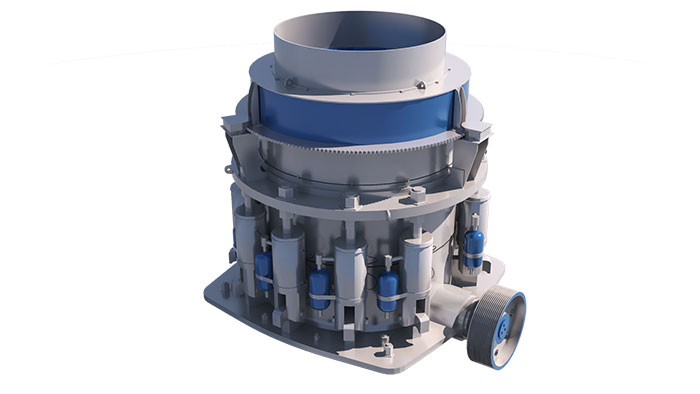

Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderCone Crusher
| model | HC870 |
| Max feed size | 300 mm |
| CSS Range | 10 - 70 mm |
| Capacity(by hour) | 280 - 1512 t/h |
| Motor power | 600 kW |
| Dimensions | 6370×3680×4550 mm |
*Note: The processing capacity of the HC870 cone crusher may vary with different materials and feeding sizes.
It is seen on the production site the crushed limestone is uniformly conveyed into the silo. The hammer crusher is configured as primary crushing equipment for this stone crusher plant. With sound grain size and shape the crushed sand and
Leiming Stone Production Line is with closed-loop design that has less dust pollution. Dingli is committed to building green and new-type gravel aggregates production line.
This production line of 1100 tons of sand and aggregate can achieve unified production management, unmanned shovel loading, unmanned inspection, unmanned dust collection, and the use of one-click start-stop operations.
1. Maximum Feed Size: 300mm, it can process large - sized materials, meeting the needs of large - scale production.
2. Discharge Opening Adjustment Range: 10 - 70mm, flexibly adjust the discharge particle size.
3. Power: 600kW, with powerful power to support efficient and stable operation.
4. Production Capacity: 280 - 1512t/h, the high production capacity is suitable for large - scale operations.
5. Weight: 50 tons, the solid structure ensures stable operation.
6. Overall Dimensions: 6370*3680*4550mm, the design is suitable for large - scale sites.
1. Large - scale Mining: In metal mines, such as iron ore, copper ore mining, it can directly carry out coarse and medium crushing of the mined large - scale raw ore, reducing the crushing process and improving the mining efficiency. Its advantages of large feed size and high production capacity can meet the large - scale production needs of mines and reduce production costs.
2. Construction Aggregate Production: When producing construction sand and gravel aggregates, according to the requirements of different construction projects for aggregate particle sizes, by adjusting the discharge opening, high - quality aggregates of different specifications can be produced, which are widely used in concrete mixing, road construction and other fields to ensure the quality of construction projects.
3. Industrial Waste Residue Treatment: For industrial waste residues generated in industrial production, such as steel slag, furnace slag, etc., it can effectively carry out crushing treatment to realize the recycling of resources. The crushed waste residues can be used to make building materials, roadbed filling materials, etc., reducing environmental pollution and creating economic value.
4. Water Conservancy and Hydropower Projects: In dam construction, river regulation and other water conservancy and hydropower projects, it can crush stones and provide stones with appropriate particle sizes for the project, which are used in dam filling, slope protection and other links to ensure the smooth progress of water conservancy and hydropower projects.
