Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderCone Crusher
| Model | Power (KW) | Chamber Type | Maximum Feeding Size (mm) |
| MG500 | 315 | EC | 275 |
| C | 215 | ||
| MC | 175 | ||
| M | 135 | ||
| F | 85 |
| Chamber Type | Tight Side Discharge Port (mm) Corresponding Production Capacity (t/h) | ||||||||
| 13 | 16 | 19 | 22 | 25 | 32 | 38 | 44 | 51 | |
| EC | 177 | 190 - 338 | 203 - 436 | 216 - 464 | 246 - 547 | 272 - 605 | 298 - 662 | 328 - 511 | |
| C | 171 - 190 | 184 - 367 | 196 - 480 | 209 - 510 | 238 - 582 | 263 - 643 | 288 - 512 | 317 - 353 | |
| MC | 162 - 253 | 174 - 426 | 186 - 455 | 198 - 484 | 226 - 552 | 249 - 499 | 273 - 364 | ||
| M | 197 - 295 | 211 - 440 | 226 - 470 | 240 - 500 | 274 - 502 | 302 - 403 | |||
| F | 185 - 304 | 210 - 328 | 225 - 352 | 241 - 376 | 256 - 400 | 292 - 401 | 323 | ||
*Note: The processing capacity of the E-SMG500 cone crusher may vary with different materials and feeding sizes.
In this production site all the equipment is orderly placed in there for different processes. And it can save the electric energy by using huge inertance of high place production line to convey materials to the relative process equipment.
Its seen in the pics that the finished materials with various grain sizes are stored in the different silos for sale. The ordinary aggregates and fine aggregates are well separated.

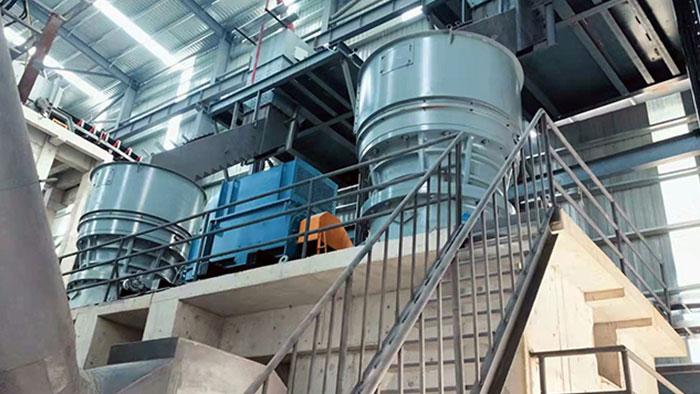

Its seen the crushing equipment is neatly arranged at the customers production site and the dust proof facility is installed in all the conveying equipment. The dust prevention measure is especially required in the junction of equipment.
The wear parts of the E-SMG series cone crushers cover several key components, as follows:
Mantle: As an important part that directly contacts the material and participates in the crushing process, it will gradually wear out during long-term crushing operations.
Concave: It is also a key part of the crushing chamber and works in conjunction with the mantle. Its wear condition also directly affects the performance and crushing effect of the crusher.
Feed Cone: It plays a role in guiding and preliminarily processing the material before it enters the crushing chamber and will also experience wear after long-term use.
Main Frame Liner: It protects the main frame and prevents the material from damaging the main frame during the crushing process. It will gradually wear out during the operation.
Feed Cone Guard: It can protect the feed cone from external interference and additional wear and ensure its normal operation.
Rib Plate: It plays a role in strengthening and protecting and is of great significance for maintaining the structural integrity of related parts and reducing wear.
Wear Part Fastening: Although it is not a part directly involved in crushing, it is related to the stability of all wear parts. If there is a problem with the fastening, it may lead to abnormal wear or even detachment of the wear parts and affect the normal operation of the crusher.
