E-SMG800

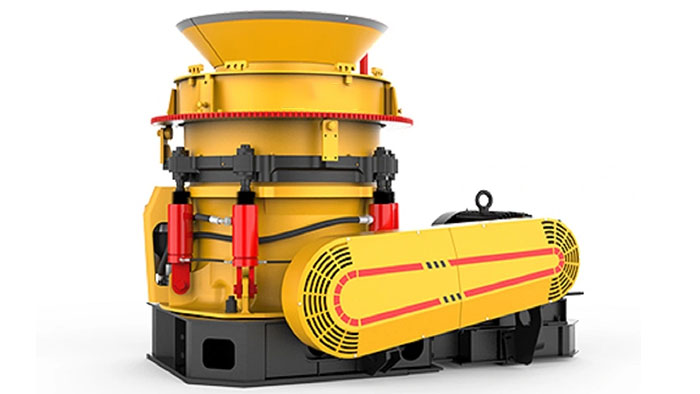

E-SMG800 Single Cylinder Hydraulic Cone Crusher: Core Equipment for Large-scale Production

The E-SMG800 is a leading crusher in the field of large-scale crushing, integrating strong crushing force, intelligent control, high efficiency and flexible adaptability, and providing high-quality solutions for mining, sand and gravel, and high-end manufacturing raw material processing.

II. In-depth Analysis of Technical Parameters

1. High Power and Multi-cavity Type Collaboration

Equipped with a 710KW high power, the EC cavity type (maximum feed size of 370mm) is used for coarse crushing of large ore, such as open-pit iron mines; the C cavity type (330mm) controls the particle size in the intermediate crushing stage, suitable for aggregate in large-scale projects; the MC cavity type (260mm) ensures uniform product particle size and is used for high-quality manufactured sand; the M cavity type (195mm) produces fine products, such as quartz sand for glass; the F cavity type (120mm) produces special ultra-fine materials to meet the needs of high-end manufacturing.

2. Precise Discharge Control and Production Capacity Adaptation

In the EC cavity type, when the discharge port is 6mm, the production capacity is 560 - 1275t/h, and when it reaches 70mm, it can reach 910 - 2100t/h; in the C cavity type, the production capacity is 570 - 1350t/h at 6mm and increases with the increase of the discharge port. Each cavity type has a unique curve, allowing operators to adjust the discharge port according to the task to balance production volume and quality.

III. Highlighting of Application Advantages

1. Intelligent Operation and Precise Production Control

The intelligent system monitors the operating status, adjusts parameters according to the data, and quickly responds to changes in materials or equipment to ensure accurate and stable production and avoid quality fluctuations.

2. Energy-saving and High-efficiency and Green Practice

Advanced energy-saving technology, such as the transmission and motor control module, reduces energy consumption by about 15% - 20%, reduces costs and meets energy-saving requirements, and promotes the sustainable development of the industry.

3. High-strength Structure and Stable Operation Guarantee

The fuselage is strong, resistant to fatigue and impact. The single-cylinder hydraulic simple structure improves stability, and has a low failure rate even under full load, ensuring continuous production.

4. Convenient Maintenance and Quick Fault Exclusion

The modular design is easy to disassemble and replace. The key parts of the hydraulic system are integrated. When a fault occurs, the module can be quickly replaced. The remote diagnosis function allows remote monitoring and determination of fault causes, improving the exclusion efficiency and reducing costs.

In conclusion, the E-SMG800, with its excellent technology, strong performance, intelligent control and multiple advantages, plays a crucial role in large-scale engineering and high-end manufacturing fields and helps enterprises achieve efficient, accurate and sustainable production.
