GP220

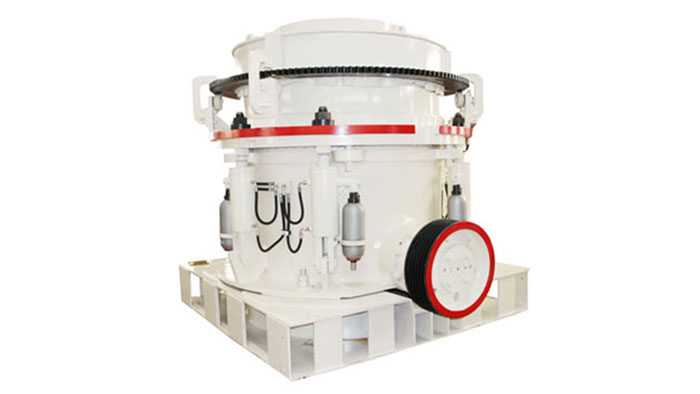

GP220 Cone Crusher: An Excellent Option in Industrial Crushing

The GP220 cone crusher, with its remarkable performance and high cost - effectiveness, has become a top - notch choice in aggregate production and mining operations. It can be applied to fixed, wheel - mounted, and mobile scenarios.

Product Features and Application Range

As a compact model within the series, the GP220 cone crusher is highly functional. It is suitable for medium crushing, fine crushing, and ultra - fine crushing. In aggregate production, it can precisely control the shape and particle size of sand and gravel, guaranteeing the production of high - quality concrete. In mining, whether it's hard iron ore, copper ore, or relatively soft limestone, it can efficiently crush these materials to meet the requirements of subsequent processing.

Besides the traditional fixed - type model, the wheel - mounted and mobile models of the GP220 are designed to meet the diverse needs of different working environments. The wheel - mounted model can be easily moved in relatively flat areas and quickly deployed to various production sites. The mobile model, equipped with a crawler - type chassis, integrates multiple functions like crushing and screening, and can operate in complex terrains such as mountains and swamps, thus expanding the scope of crushing operations.

Analysis of Prominent Advantages

Stable Performance over Time

From a mechanical design perspective, the GP220 cone crusher has optimized its castings. By using advanced casting techniques and high - strength alloy materials, it not only reduces the overall weight of the equipment but also significantly improves its structural strength and rigidity. This allows it to adapt to a higher rated power, which ranges from 132 - 220 kW (175 - 300 hp), more powerful than similar - sized crushers.

Its crushing cavity design is unique. With an asymmetric curve structure, it ensures smooth material flow and increases the number of collisions and extrusions between materials and the crushing wall. Coupled with a steep moving cone angle , materials can be more effectively crushed in the cavity. Regardless of the particle size and humidity of the feed, it can stably achieve a high crushing ratio and transform large - particle materials into products of the desired particle size.

In terms of automated control, the GP220 cone crusher is equipped with an advanced intelligent control system. This system uses high - precision sensors to monitor the crusher's operating parameters in real - time, such as motor current, oil temperature, oil pressure, and material throughput. When parameters deviate from the optimal range, the system can quickly respond and automatically adjust the crusher's operating state to ensure a high startup rate and stable output.

Exceptional Reliability

The two - point supported main shaft design, the core of the GP220 cone crusher's mechanical structure, ensures its reliability. This design stably supports the main shaft on the base through two high - precision tapered roller bearings, effectively distributing the large radial and axial forces generated during the crushing process. Compared with traditional multi - point supported structures, it reduces issues like bearing wear and main shaft deformation caused by uneven stress, thus extending the equipment's service life.

To further enhance reliability, the GP220 is equipped with an intelligent monitoring and early - warning system. This system uses advanced sensor technology and data analysis algorithms to monitor key components such as bearings, gears, and crushing walls. When potential faults like abnormal wear, high temperature, or excessive vibration are detected, the system immediately issues an audible and visual alarm and sends the fault information to the operator's mobile device or monitoring center via a remote communication module. Operators can then arrange maintenance in advance based on the early - warning information, preventing production stoppages due to sudden failures and improving the equipment's startup rate.

In terms of material selection, the GP220 cone crusher uses high - strength alloy steel that has been specially heat - treated and manganese steel alloy with excellent wear - resistance. These materials ensure the equipment's structural strength and improve the wear - resistance of its components. For example, the newly developed high - manganese steel alloy used for the crushing wall can form a hard work - hardened layer on its surface in a high - impact and high - extrusion environment, effectively resisting material wear, extending the replacement cycle of the crushing wall, and reducing maintenance costs.

Broad Applicability

The GP220 cone crusher has a wide eccentricity adjustment range, from 18 mm to 40 mm, which can meet the requirements of different materials and production processes. When processing hard and brittle materials, the eccentricity can be increased to enhance the crushing force and material throughput. When dealing with materials with strict particle size requirements, the eccentricity can be reduced to achieve a finer crushing effect.

Simultaneously, by adjusting the horizontal shaft speed within an appropriate range (to be determined based on real - world tests), the crusher's crushing frequency can be flexibly controlled. Combined with different crushing cavity types (such as standard, medium, and short - head types), users can precisely control the material crushing effect according to actual production needs.

Moreover, the GP220 cone crusher supports various automated control modes. In addition to common manual control and remote centralized control, it has an advanced adaptive control function. This function automatically adjusts the crusher's operating parameters by monitoring real - time parameters such as feed rate, particle size distribution, and material humidity, ensuring the best crushing effect and production efficiency under different working conditions.

Easy Installation, Use, and Maintenance

GP220 cone crusher is lower than that of similar equipment. This design simplifies and lightens the required support structure and shortens the length of the supporting conveyor. As a result, it not only reduces the material cost and construction difficulty during installation but also decreases the energy consumption during the equipment's operation.

During daily use, the equipment's operation interface is simple and intuitive. Operators can easily start, stop, and adjust parameters through the color touch - screen. Meanwhile, the equipment is equipped with a complete set of safety protection functions, such as overload protection, leakage protection, and emergency braking, to ensure operator safety.

In terms of maintenance, the GP220 cone crusher adopts a modular design. Each key component, such as the crushing cavity, main shaft assembly, and transmission device, is an independent module. When a component fails, the operator can directly remove and replace the damaged module without disassembling the entire equipment, greatly reducing maintenance time. Additionally, most maintenance work can be carried out from the top, eliminating the need for operators to enter the crusher interior, which further improves maintenance safety and convenience.

With its excellent performance, reliable quality, wide applicability, and convenient maintenance, the GP220 cone crusher provides a comprehensive and high - performance solution for industrial crushing operations. It helps enterprises gain a competitive edge in the market and achieve sustainable development.
