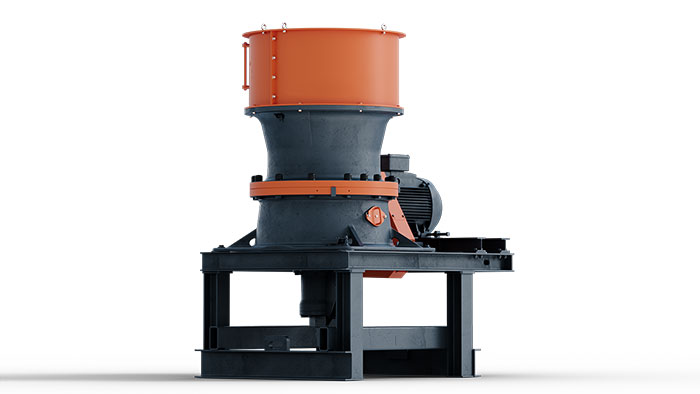

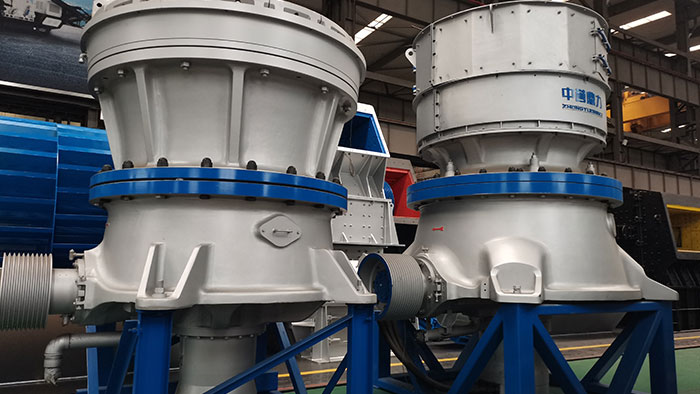

HC430

HC430 Single - cylinder Hydraulic Cone Crusher: In - depth Analysis of Working Principle

Basic Parameters

1. Maximum Feed Size: 185mm, it can accept larger - sized materials, laying the foundation for subsequent crushing.

2. Discharge Opening Adjustment Range: 5 - 38mm, which can flexibly regulate the discharge particle size to meet diverse production needs.

3. Power: 160kW, providing stable power to ensure the continuous operation of the equipment.

4. Production Capacity: 37 - 219t/h, the production capacity is suitable for various - scale production scenarios.

5. Weight: 9.2 tons, the moderate weight is convenient for transportation and installation.

6. Overall Dimensions: 1741*1360*2570mm, the compact design saves space.

Working Principle

1. Transmission System Operation: The motor outputs power and drives the pulley to rotate through the V - belt. The pulley then transmits power to the eccentric sleeve through the bevel gear, and the eccentric sleeve starts to rotate after obtaining power.

2. Eccentric Motion for Crushing: The lower part of the vertical shaft is installed in the eccentric sleeve. As the eccentric sleeve rotates, the vertical shaft will draw a conical surface. At this time, the moving cone connected to the vertical shaft will also make a uniform pendulum motion around the center line of the fixed cone. When the moving cone approaches the fixed cone, the materials between them are subjected to strong extrusion force, and the ore is gradually crushed.

3. Uniform Material Distribution: After the ore enters the crusher from the feed inlet, it will fall on the distribution plate installed at the upper end of the vertical shaft. Since the vertical shaft is constantly rotating, the distribution plate also vibrates, thereby evenly dispersing the ore around the cone, ensuring a uniform and efficient crushing process and avoiding local over - crushing or uneven crushing.
