HCC66B

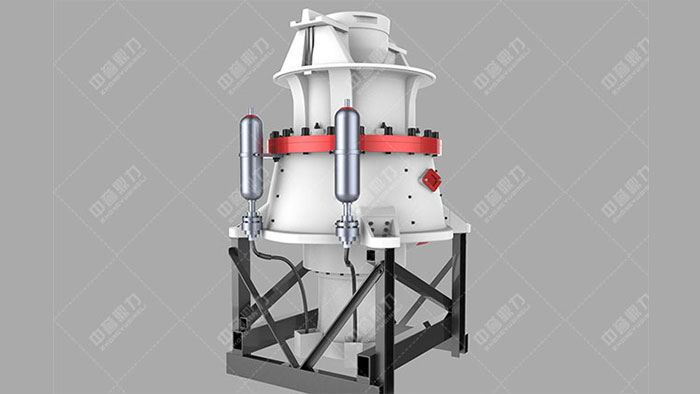

HCC66B Cone Crusher: High - Capacity Crushing for Diverse Needs

In the field of industrial crushing, having a crusher that can adapt to various materials and production requirements is crucial. The HCC66B Cone Crusher stands out with its multiple cavity types and remarkable production capacity, offering a reliable solution for different crushing scenarios.

Multi - Cavity Design and Production Capacity

The HCC66B Cone Crusher is equipped with four distinct cavity types: Fine Type, Medium Type, Coarse Type, and Extra Coarse Type. Each type is tailored to specific crushing tasks, ensuring high - efficiency and high - quality output.

Fine Type Cavity: Precision and High - Yield in Fine Crushing

The Fine Type cavity is designed for operations that demand precise and fine crushing. With a maximum feed size of 178mm and a discharge range of 16 - 38mm, it can produce high - quality fine - grained products. The processing capacity of this cavity ranges from 186 to 337 tons per hour. This makes it suitable for industries such as the production of high - grade building materials and fine - powder products, where strict particle - size requirements are necessary.

Medium Type Cavity: Balanced Crushing Performance

For those seeking a balance between particle size and production volume, the Medium Type cavity is an ideal choice. It can handle a feed size of up to 205mm and produces a discharge in the range of 22 - 51mm. The processing capacity lies between 266 and 430 tons per hour. This cavity type is often used in general - purpose crushing operations, such as in small - to - medium - sized quarries and construction sites, where a moderately sized output is required.

Coarse Type Cavity: Heavy - Duty Coarse Crushing

The Coarse Type cavity is built for heavy - duty applications. It can accept a maximum feed size of 228mm and has a discharge range of 25 - 64mm. With a processing capacity ranging from 308 to 654 tons per hour, it is well - suited for primary and secondary crushing in large - scale mining and quarrying operations. This cavity can quickly break down large rocks into more manageable sizes, improving the overall efficiency of the production process.

Extra Coarse Type Cavity: Handling the Largest Materials

When dealing with extremely large materials, the Extra Coarse Type cavity shines. It can handle feed sizes up to 313mm and has a discharge range of 38 - 64mm. The processing capacity of this cavity is in the range of 444 to 664 tons per hour. This makes it perfect for the initial stage of crushing in major mining projects, where large boulders need to be rapidly reduced in size.

Power and Structural Advantages

The HCC66B Cone Crusher is powered by a 220kW motor, providing sufficient energy to drive the crushing process regardless of the cavity type in use. This high - powered motor ensures consistent and efficient performance, even when processing tough materials. The equipment weighs 50 tons and has dimensions of 3911×2870×3771mm. This substantial weight and well - designed structure contribute to its stability during operation, minimizing vibrations and ensuring a long service life.

Conclusion

The HCC66B Cone Crusher, with its diverse cavity types and high - capacity performance, is a versatile and powerful tool in the industrial crushing market. Whether you need fine - grained products, a balanced output, or heavy - duty coarse crushing, this crusher can meet your needs effectively. Its reliable power source and stable structure make it a valuable investment for any crushing - related business.
