HCC84D

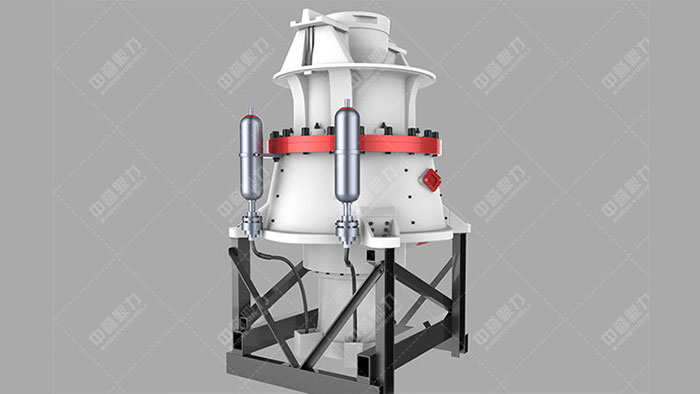

HCC84D Cone Crusher: High - Performance Crushing with Multiple Cavity Options

In the world of industrial crushing, the HCC84D Cone Crusher stands out as a powerful and versatile solution. With its multiple cavity types, it can adapt to various crushing needs, ensuring high - efficiency and quality output. Let's take a closer look at its key features.

Multiple Cavity Types for Diverse Crushing Requirements

The HCC84D Cone Crusher offers four distinct cavity types: Fine Type, Medium Type, Coarse Type, and Extra Coarse Type. Each cavity type is engineered to optimize the crushing process for specific materials and end - products.

Fine Type Cavity: Precision Fine - Grained Crushing

The Fine Type cavity is designed for applications where fine - grained products are required. It can accept a maximum feed size of 89mm and produces a discharge range of 5 - 16mm. The processing capacity of this cavity ranges from 196 to 420 tons per hour. This makes it ideal for industries such as the production of high - quality building materials, where fine aggregates are essential for a smooth finish and high strength.

Medium Type Cavity: Balanced Output and Efficiency

When a balance between particle size and production volume is needed, the Medium Type cavity is the go - to option. It can handle a feed size of up to 113mm and has a discharge range of 10 - 19mm. The processing capacity lies between 365 and 523 tons per hour. This cavity type is commonly used in general quarrying and recycling operations, where a moderately sized and consistent output is desired.

Coarse Type Cavity: Heavy - Duty Coarse Crushing

The Coarse Type cavity is built for heavy - duty applications. It can accept a maximum feed size of 151mm and has a discharge range of 13 - 25mm. With a processing capacity ranging from 468 to 617 tons per hour, it is well - suited for primary and secondary crushing in large - scale mining and ore processing. It can quickly break down large rocks into more manageable sizes for further processing.

Extra Coarse Type Cavity: Handling Large - Sized Materials

For dealing with extremely large materials, the Extra Coarse Type cavity is the most suitable. It can handle feed sizes up to 172mm and has a discharge range of 16 - 25mm. The processing capacity of this cavity is in the range of 523 to 673 tons per hour. This makes it perfect for the initial crushing stage in major mining projects, where large boulders need to be rapidly reduced in size.

Powerful Performance and Sturdy Design

The HCC84D Cone Crusher is powered by a 315kW motor, providing sufficient energy to drive the crushing process across all cavity types. This high - powered motor ensures consistent and efficient performance, even when dealing with hard and abrasive materials. The equipment weighs 90 tons and has dimensions of 4613×3302×4638mm. Its substantial weight and well - designed structure contribute to its stability during operation, reducing vibrations and ensuring a long service life.

Conclusion

The HCC84D Cone Crusher, with its multiple cavity types, high processing capacity, and robust design, offers a comprehensive solution for a wide range of crushing applications. Whether you need fine - grained products, a balanced output, or heavy - duty coarse crushing, this crusher can meet your requirements effectively. Its reliable power source and stable structure make it a valuable asset for any industrial crushing operation.
