Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderCone Crusher
| Model | Cavity | Feed opening (mm) | Maximum feed (mm) | Discharge port (mm) | Motor power (kw) | Weight (t) | Capacity (t/h) |
| HPM300 | C1 | 235 | 190 | 26 | 220 | 20 | 230 - 445 |
| C2 | 211 | 170 | 20 | 200 - 445 | |||
| C3 | 150 | 120 | 16 | 180 - 445 | |||
| F1 | 107 | 85 | 14 | 160 - 220 | |||
| F2 | 53 | 40 | 12 | 140 - 220 |
*Note: The processing capacity of the HPM300 cone crusher may vary with different materials and feeding sizes.
At present, the highest configuration in the industry, when the output reached 3000 tons, is the highest configuration of the production line in the industry, less power consumption, the production of sand and stone aggregate particle shape, particle size, grading, stone powder content can be adjusted and controlled, the proportion of fine stone accounted for more than 2/3.
Although there are only several sets of mining equipment adopted in this production line the capacity can reach 300 ton per hour. It mainly lies in Dingli’s PCZ 1512 heavy hammer crusher with the hourly capacity of 320 ton.
The 200t/h stone production line configuration is PCZ1510 heavy hammer crusher ZG0938 vibrating feeder 2YK1560 vibrating screen*2 sets.

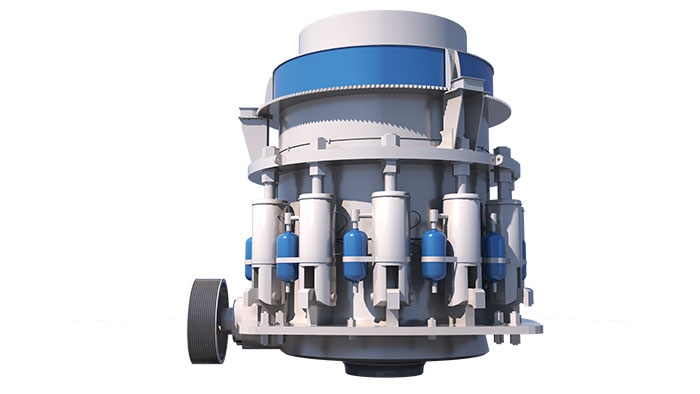

The HPM300 Multi-Cylinder Hydraulic Cone Crusher is designed for high-capacity crushing applications, particularly suitable for hard materials like granite, basalt, and quartz. With a maximum feed opening size of 1100 mm and a processing capacity range of 230 - 445 t/h, the HPM300 offers superior performance and reliability.
The HPM300 employs an advanced layered compression principle, which maximizes crushing efficiency by utilizing the mutual compression of particles. This method not only increases the machine's throughput but also produces a higher proportion of cubic-shaped products with a more uniform particle size distribution.
The liners of the HPM300 are crafted from ultra-high alloy manganese steel (ZGMn18Cr2), providing exceptional wear resistance and a long service life. The bolted liner structure simplifies the replacement process, reducing maintenance time and costs.
The HPM300 is designed with a protective mechanism that effectively handles over-iron passage by smoothly releasing impact forces. Once the over-iron material passes through, the discharge opening automatically resets, ensuring the machine continues to operate safely and efficiently.
The HPM300 is equipped with a Siemens PLC control system, which enables automated production and real-time monitoring. This intelligent control system optimizes the machine's performance, ensures consistent product quality, and minimizes downtime.
