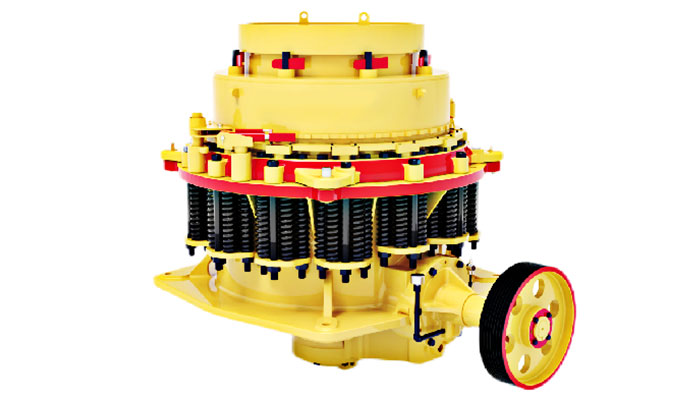

S240B Cone Crusher: An Excellent Crushing Tool

Among numerous crushing equipment, the S240B cone crusher has become one of the preferred equipment in the material crushing process for many industries, thanks to its outstanding performance parameters and reliable working performance.

I. Diversified Chamber Types and Feed Adaptability

The S240B cone crusher is equipped with four different chamber types, namely F, M, C, and EC, which enables it to flexibly meet the crushing needs of various materials with different sizes. The maximum feed particle size that the F chamber can accommodate is 188mm, that of the M chamber is 213mm, the C chamber can handle up to 241mm of feed, and the EC chamber has an even higher maximum feed particle size of 331mm. This diversified chamber type design allows it to handle both medium-sized materials after primary crushing and larger-sized raw materials with ease, greatly expanding its application range in different production scenarios and providing effective solutions for the initial crushing and further refinement processing of materials.

II. Precise Discharge Control

In terms of discharge, the S240B also demonstrates powerful control capabilities. The minimum discharge opening size varies according to the chamber type. The F chamber can be adjusted to a minimum of 15mm, the M chamber to 22mm, the C chamber to 25mm, and the EC chamber to 38mm. Through a precise adjustment mechanism, operators can strictly control the particle size range of the finished materials according to specific production requirements, ensuring that the output materials meet the standards and usage requirements of the corresponding industries. For example, in the construction industry, when producing different specifications of sand and gravel aggregates, this crusher can accurately crush stones to the appropriate particle size, ensuring the quality of building sand and gravel and providing a solid material foundation for high-quality construction projects.

III. Impressive Processing Capacity and Power Support

The processing capacity of the S240B is remarkable. The processing capacity ranges corresponding to different chamber types are as follows: the F chamber is 181 - 327t/h, the M chamber is 258 - 437t/h, the C chamber is 354 - 610t/h, and the EC chamber can achieve a processing capacity of 538 - 743t/h. Such an impressive processing capacity means that it can efficiently complete the crushing work of a large amount of materials within a unit time, meeting the needs of large-scale production. All of this is attributed to its equipped 240KW motor, which provides sufficient and powerful power support for the stable operation and continuous and efficient crushing operation of the equipment, ensuring that the entire crushing process can proceed smoothly and fully utilize the performance advantages of the equipment.

In conclusion, the S240B cone crusher, with its reasonable chamber type design, precise discharge control, and excellent processing capacity, has demonstrated extremely high application value in many fields such as mine exploitation and building material production. It has made important contributions to the efficient and precise operation of the material crushing process and is a powerful assistant for relevant industries to achieve high-quality production.
