Sand Aggregate IndustryComprehensive Service ProviderSand Aggregate IndustryComprehensive Service ProviderCone Crusher
| Model | SCS300 | |||
| Cavity Type | EC | C | M | F |
| Discharge opening range (mm) | 215 | 175 | 110 | 75 |
| Minimum discharge opening size (mm) | 16-44 | 13-38 | 13-38 | 8-32 |
| Processing Capacity (t/h) | 114-384 | 117-194 | 120-310 | 90-208 |
| Maximum Installed Power (kw) | 250 | |||
| Weight (excluding motor, in tons) | 18 | |||
*Note: The processing capacity of the SCS300 cone crusher may vary with different materials and feeding sizes.
This production line takes a leading role in the industry with relatively large hourly capacity. With the quality of crushed material meeting relative quality requirements of China such a line can provide qualified aggregates for highway railway.
This is a crushing production line established by cement industry that can crush not only limestone but clay and gypsum with high efficiency full crushing and lower wear-resistance.
The project is an expansion project, the crushing raw material is limestone, the production capacity is required to be 800-1500 tons, and the finished material is used for construction.

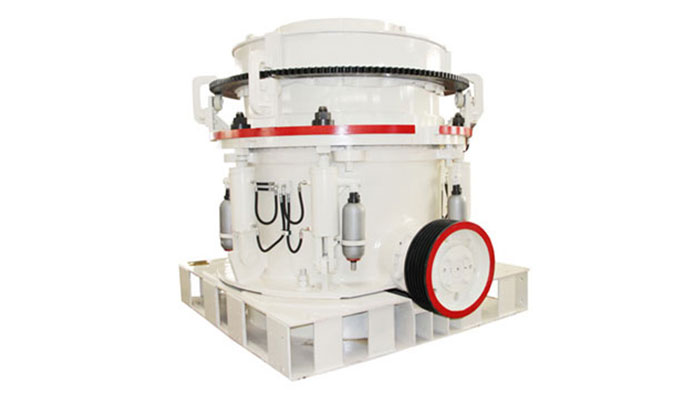

The SCS300 cone crusher is a high-performance piece of equipment that has been designed to meet the diverse needs of various industries. It offers excellent crushing capabilities, making it a popular choice for professionals in the field.
This crusher is equipped with four different cavity types: EC, C, M, and F. Each cavity type is designed with specific characteristics to handle a wide range of materials and achieve different output sizes.
The EC cavity has a discharge opening range of 215 mm, and the minimum discharge opening size varies from 16 to 44 mm. This allows it to process materials with a relatively large feed size while still maintaining control over the final output size. The C cavity, with a discharge opening range of 175 mm and a minimum discharge opening size of 13 to 38 mm, offers reliable performance for many common crushing applications.
The M cavity, which has a discharge opening range of 110 mm and a minimum discharge opening size of 13 to 38 mm, is suitable for applications where a finer output is required. The F cavity, with a discharge opening range of 75 mm and a minimum discharge opening size of 8 to 32 mm, is designed to produce even finer and more precise crushed materials.
The processing capacity of the SCS300 varies depending on the cavity type. The EC cavity can handle a processing capacity within the range of 114 to 384 tons per hour, making it suitable for high-volume production. The C cavity has a processing capacity ranging from 117 to 194 tons per hour, providing a more controlled output for specific applications.
The M cavity is capable of processing materials at a rate between 120 and 310 tons per hour, while the F cavity can manage a processing capacity within the range of 90 to 208 tons per hour. This flexibility in processing capacity allows the SCS300 to adapt to different production requirements and optimize the crushing process.
The SCS300 is powered by a motor with a maximum installed power of 250 kw, which provides sufficient energy to drive the crushing process efficiently. In terms of weight, excluding the motor, the crusher weighs 18 tons. This combination of power and weight ensures stability and reliable operation during the crushing process.
In conclusion, the SCS300 cone crusher, with its multiple cavity types, variable processing capacities, and appropriate power and weight specifications, offers a comprehensive solution for material crushing in various industries. It is a reliable and efficient choice that can help improve productivity and quality in many applications.
